GS169-4F
CREATEKING

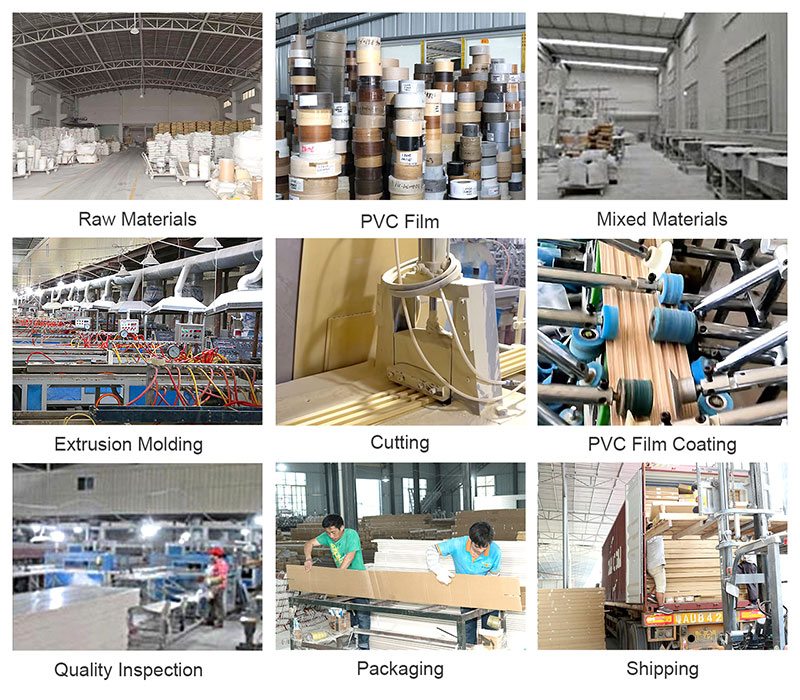

169*20mm fluted PVC wall panels are an indoor decoration material made of polyvinyl chloride (PVC) as the main raw material, with calcium carbonate, foaming agent, flame retardant, anti-aging agent, and other additives added, and extruded by special equipment. This wallboard has the characteristics of fireproof, waterproof, insect-proof, formaldehyde-free, environmentally friendly, and non-toxic, and is widely used in indoor decoration boards, offices, residential, public place building partitions, commercial decoration frames, clean room boards, ceiling boards, and other industries.

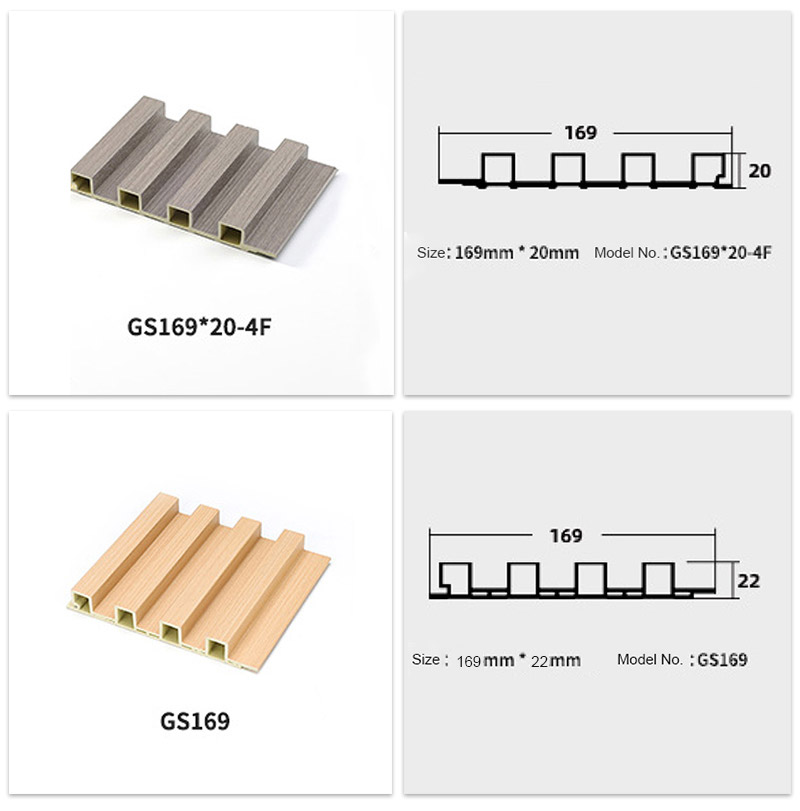

Product Name | 169*20mm fluted PVC wall panels |
Model No. | GS169-4F |
Material | Polyvinyl chloride resin powder, calcium carbonate, and additives |
Color | Fabric series / Skin series / Diatom mud series / Wood grain series / Leather series / Marble series |
Length | 2.8m / 3m / Customized |
Width | 169mm |
Thickness | 20mm or 22mm |
Surface Treatment | PVC Film Coated |
Application | Wall / Ceiling |
The length of these fluted PVC wall panels are usually 2800mm and 3000mm, the width of the product is 169mm, and the thickness is 12mm. If you need to customize different sizes, we provide professional customization services.
169×20mm fluted PVC wall panels are a modern profile product designed for interior wall decoration, integrating visual beauty, lightweight structure, and practical functions. With its unique concave and convex appearance design, environmentally friendly material craftsmanship, and convenient installation method, it has become a popular choice for home and commercial space decoration.

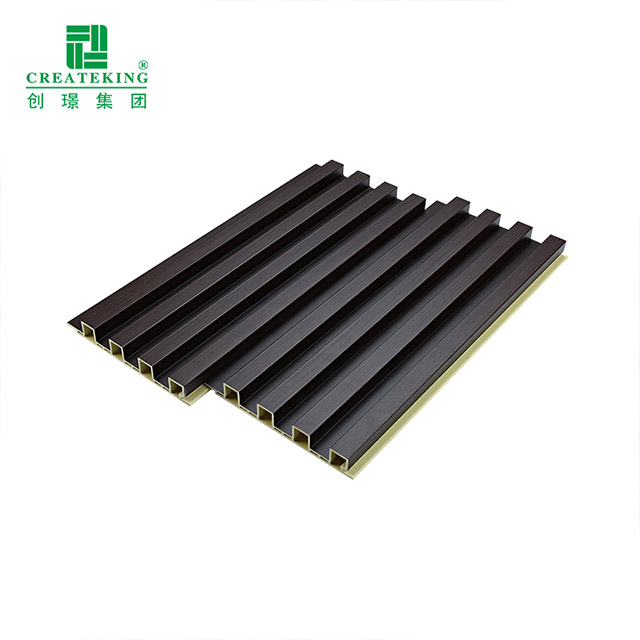

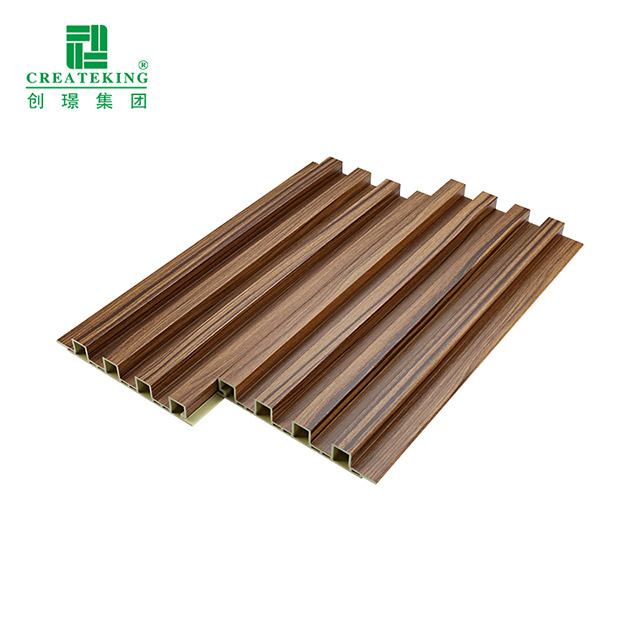

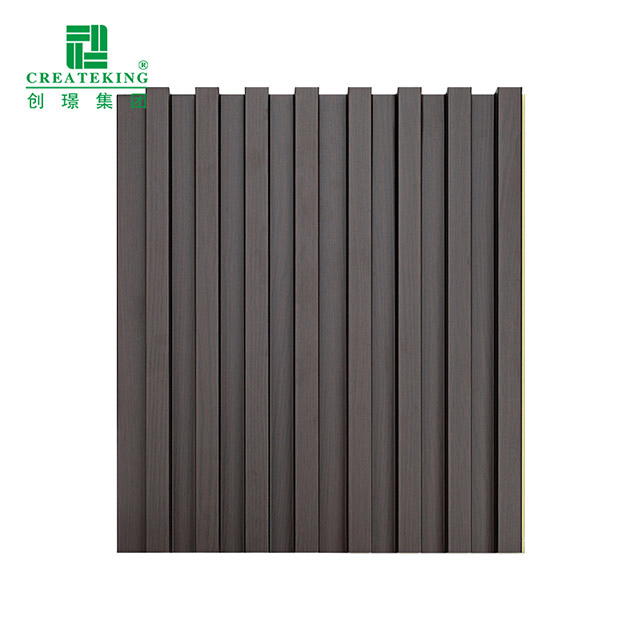

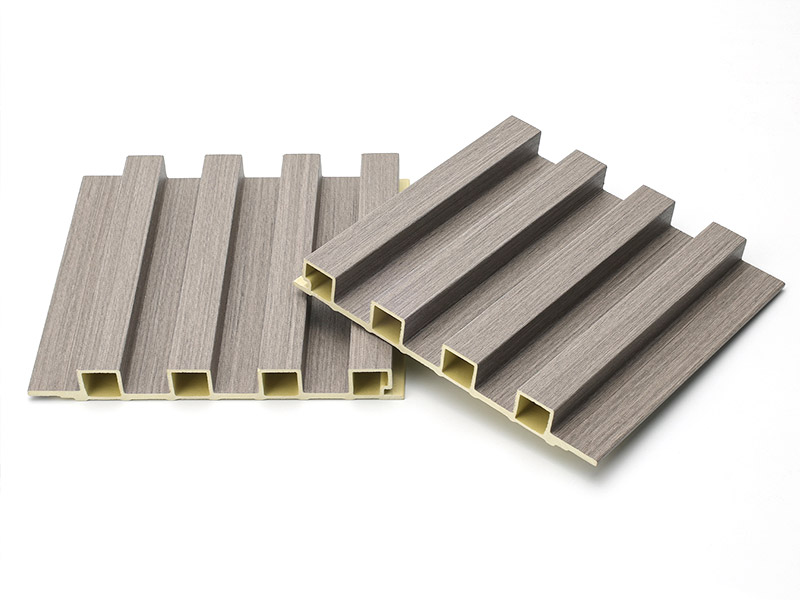

The surface of the wall panel has 4 continuous raised square vertical strips, showing a strong sense of vertical lines and a three-dimensional texture effect. This concave and convex shape not only enhances the visual level of the wall, but also plays a role in visually stretching the height of the space, especially suitable for modern, minimalist, French, or Japanese space styles.
The hollow structure effectively reduces the overall weight and improves the efficiency of handling, transportation, and construction. At the same time, the structure has good sound insulation and a certain thermal insulation effect, making it more functional. It is highly adaptable and can be easily cut or spliced according to the site conditions.
The surface adopts a hot glue coating PVC film process, which is more environmentally friendly and safer than the traditional cold glue process, and does not release formaldehyde. This technology can ensure that the finish will not peel off for more than 10 years, and is suitable for indoor spaces with a high frequency of use. The wood grain series is a commonly used finish that can restore the texture of natural wood and meet the needs of natural and humanistic styles.

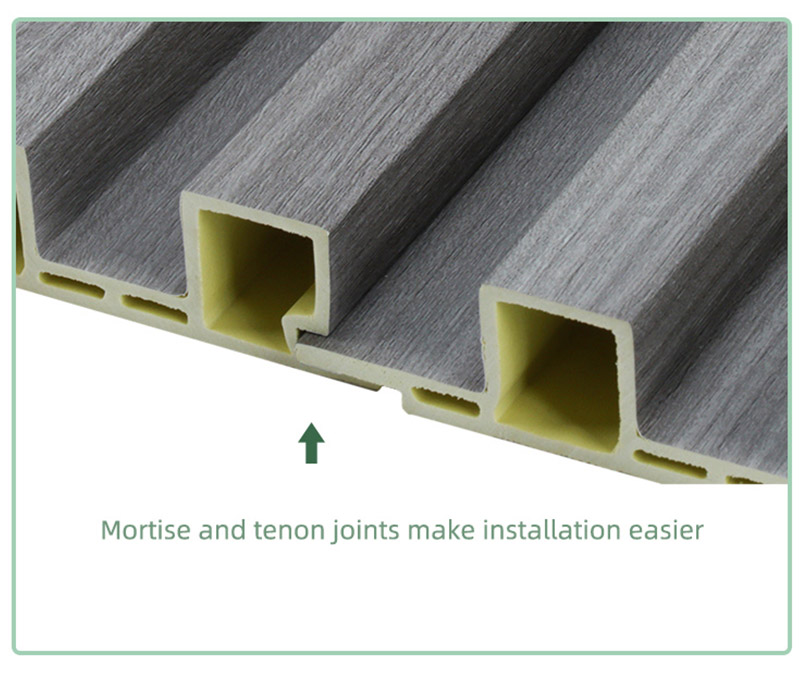

The splicing design of the mother-and-child groove structure ensures that the panels fit tightly during installation, and the splicing gap is almost invisible, which improves the integrity and refinement of the entire wall.

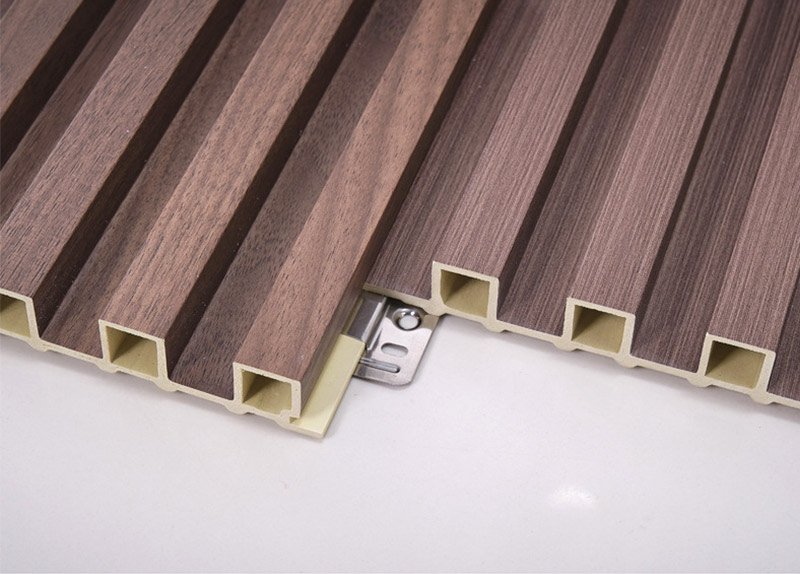

In addition, the fluted PVC wall panels are connected by metal buckles and fixed with screws. It is easy to install, stable, and durable, and suitable for large-scale and rapid construction.

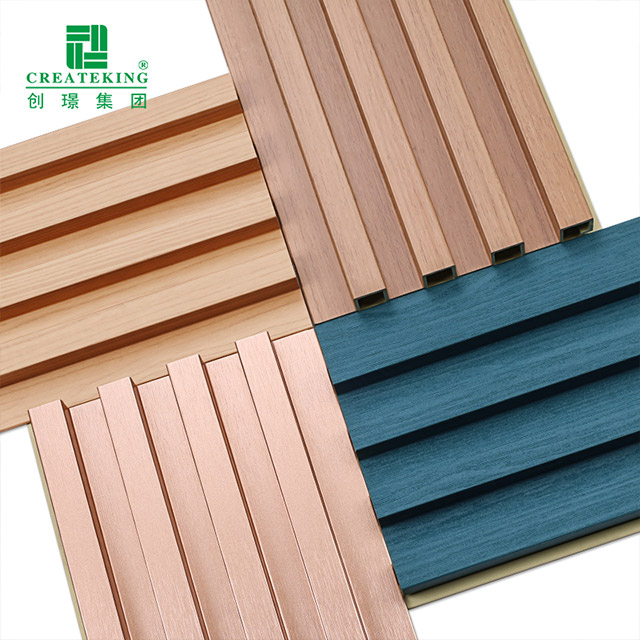

Fluted PVC wall panels offer multiple color and texture options, including fabric series, skin-feel series, diatom mud series, wood grain series, leather series, and marble series. These options can not only meet the needs of various design styles but also can be customized according to your personal preferences and project requirements Special colors to ensure that the wall panels fit perfectly with the overall space.
If you require more color options, please contact us here

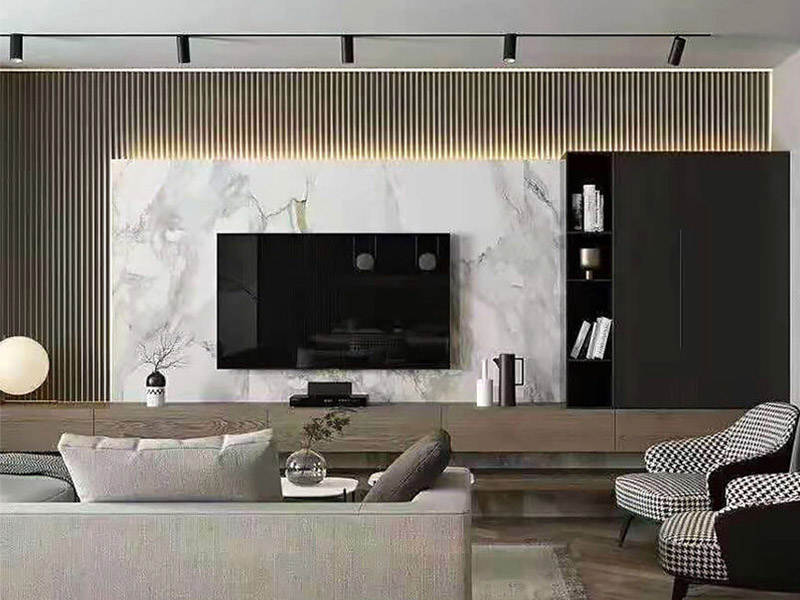

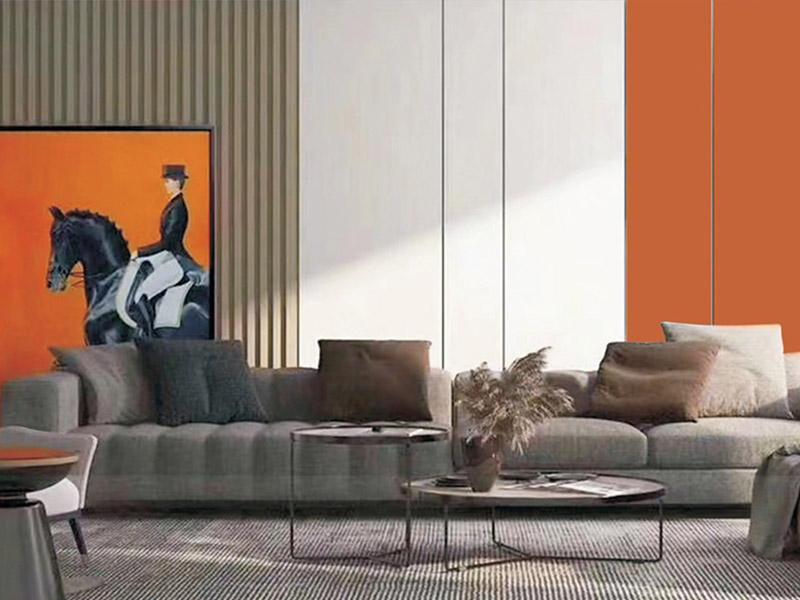

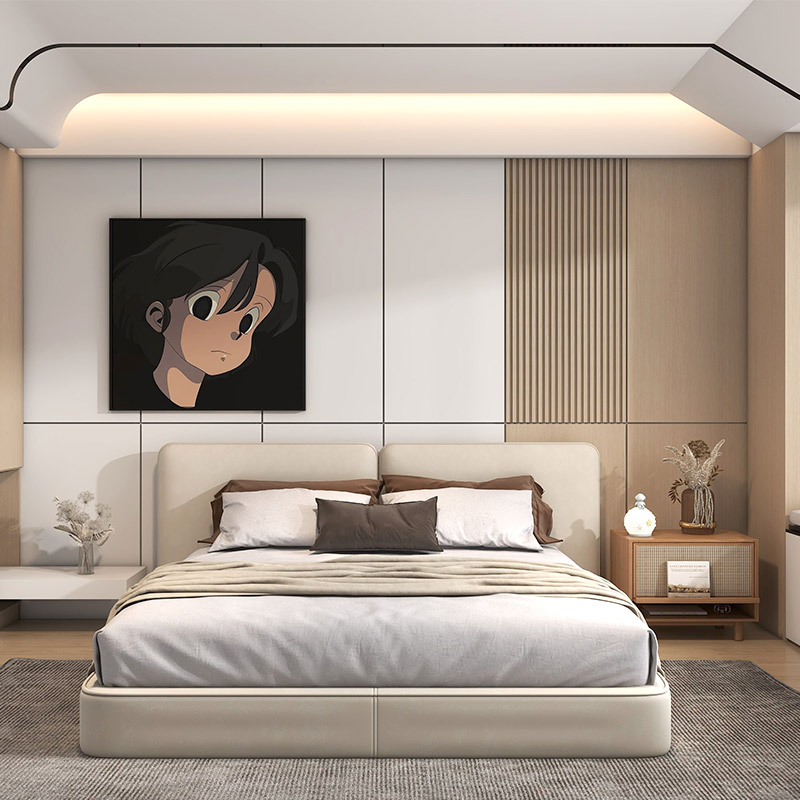

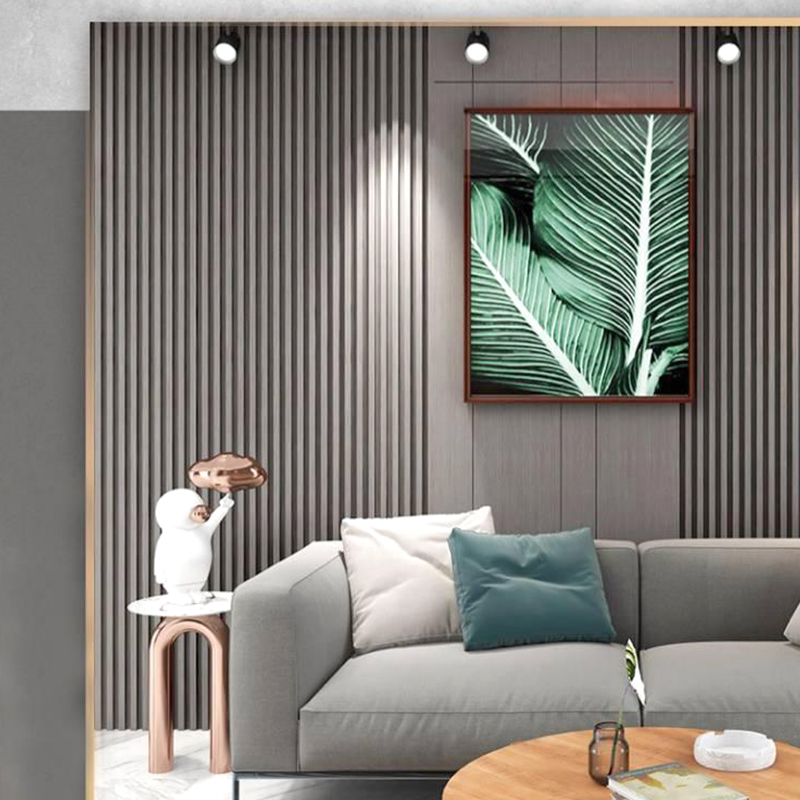

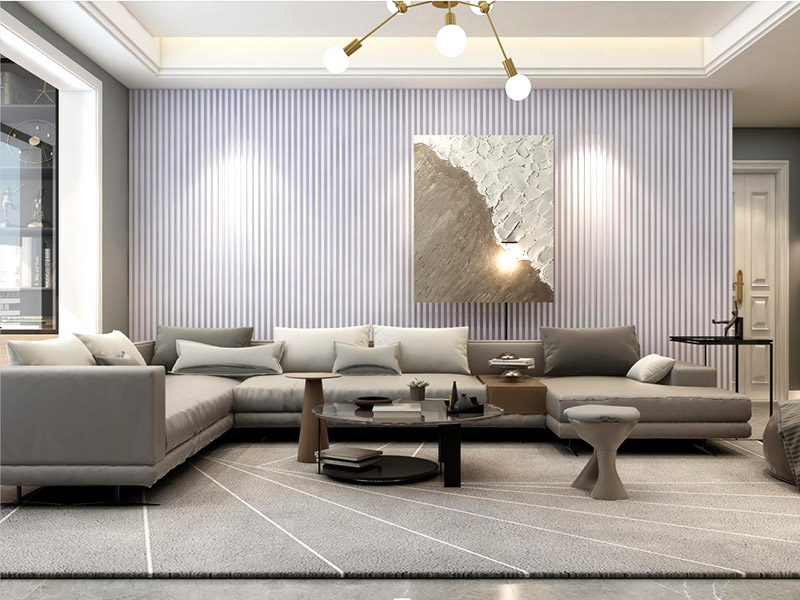

Living room background wall, bedroom wall, indoor ceiling, indoor corridor wall, etc.
The installation method of fluted PVC wall panels is very flexible, and you can choose the appropriate method according to the flatness of the wall.

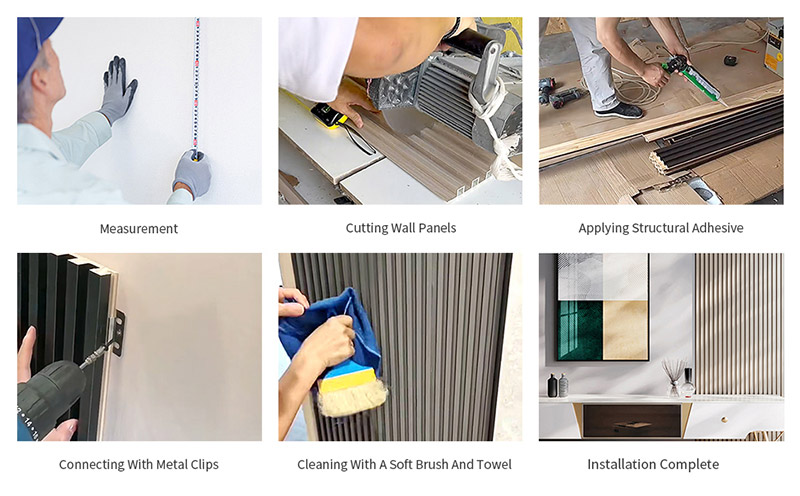

For flat walls, there is no need to prime, just apply glue on the back of the wall panels and fix them, and then splice them with clips or screws. Two connectors are required for each meter of wall panels to ensure a firm connection.

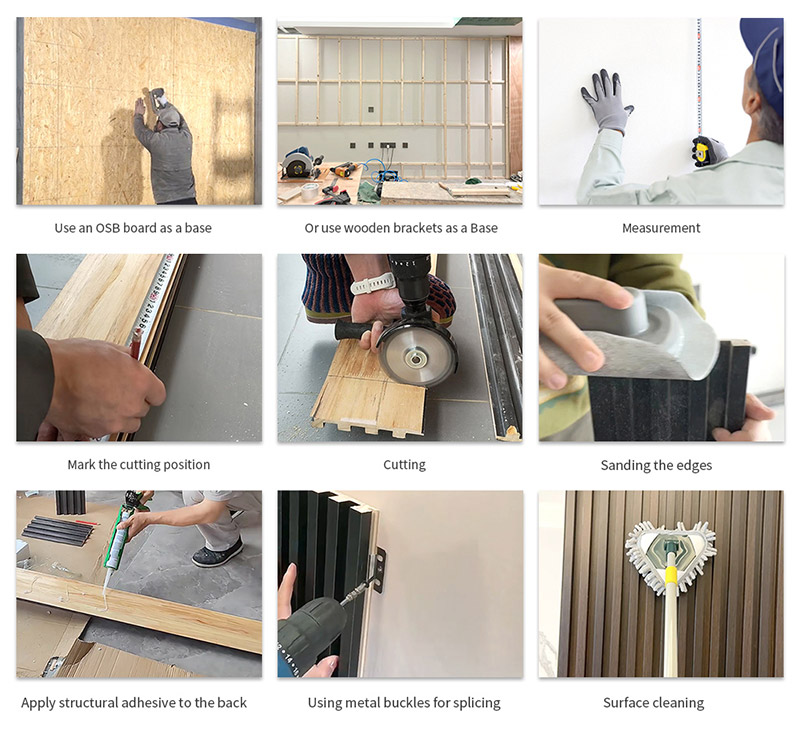

For uneven walls, you need to prime first, use materials such as wood, adjustable keels, or wooden boards to provide a flat installation foundation, and then splice the wall panels in turn, and fix them diagonally with air nails at the notch position to ensure that the wall panels fit the wall firmly. This diverse installation method ensures that the wall panels can achieve beautiful and stable effects under different wall conditions.

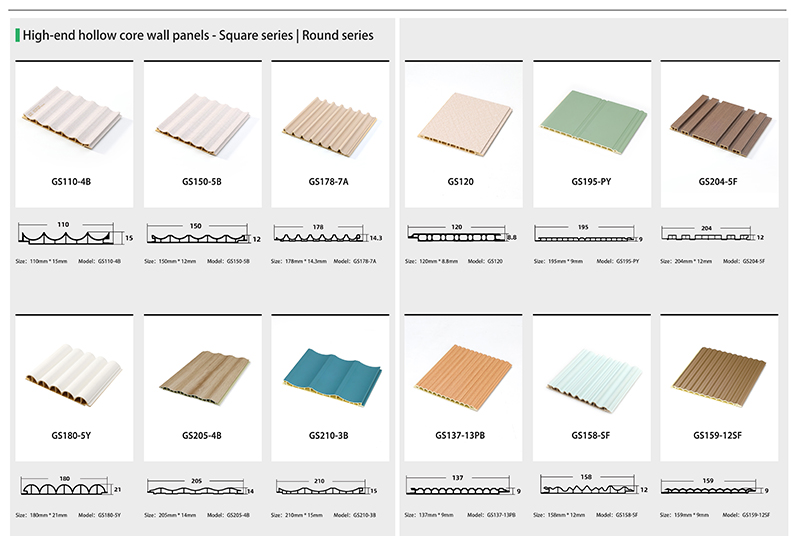

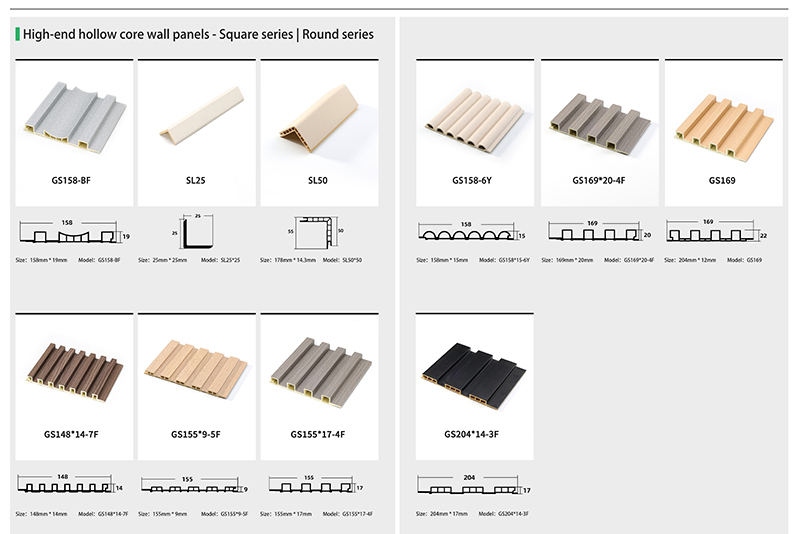

Click here for the complete product catalog
Sales Manager：Aileen
Tel: +86 13929113888
Whatsapp: +86 13929113888
Email: ck_aileen@createking.com
Factory address: MindSha South Road No.3, DanZao Town, Foshan City, China. 528223
Q1: What is the best method for cutting the fluted PVC wall panels during installation?
A1: Cutting and shaping these panels during installation can be done effectively with the right tools and techniques. We recommend using a fine-toothed saw, such as a circular saw or jigsaw, to achieve precise cuts. Before cutting, ensure that the panel is securely clamped to prevent any vibration or movement during the process.
For shaping or making cutouts, a router can be used with a suitable template to achieve accurate and clean edges. Additionally, a hand plane or sandpaper can be employed to refine the edges and achieve a seamless fit. It is essential to wear appropriate safety gear, such as goggles and a dust mask, to protect yourself during the cutting and shaping process.
We understand that proper installation is crucial for achieving the best results with our fluted PVC wall panels, and we are here to provide you with any necessary guidance or support throughout the process. Please feel free to reach out to our team if you have any further questions or require assistance during the installation. Your satisfaction is our priority, and we are committed to ensuring that your experience with our products is seamless and successful.
Q2: Are the fluted PVC wall panels suitable for use in areas with high humidity or moisture?
A2: Our fluted PVC wall panels offer excellent resistance to moisture and humidity, making them ideal for areas with high humidity levels such as bathrooms and kitchens. They will not warp, swell, or rot, ensuring long-lasting durability and an ideal alternative to traditional wood. We are committed to providing high-quality products and excellent customer service to ensure your interior design needs are met.
