NFC305
CREATEKING

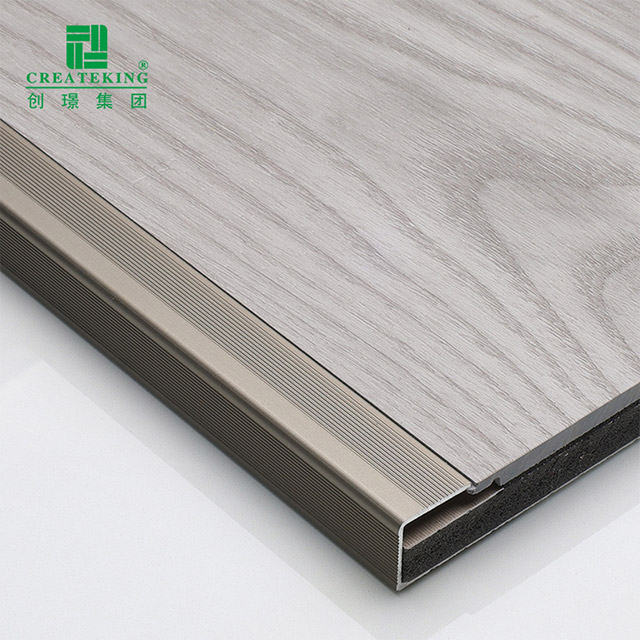

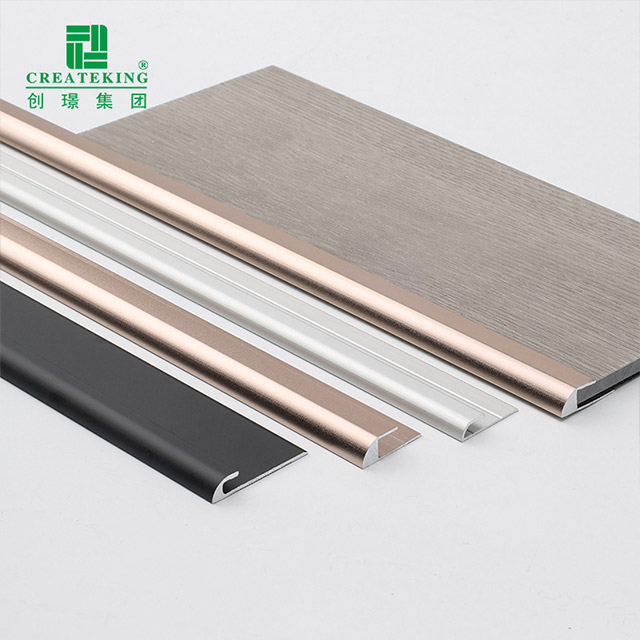

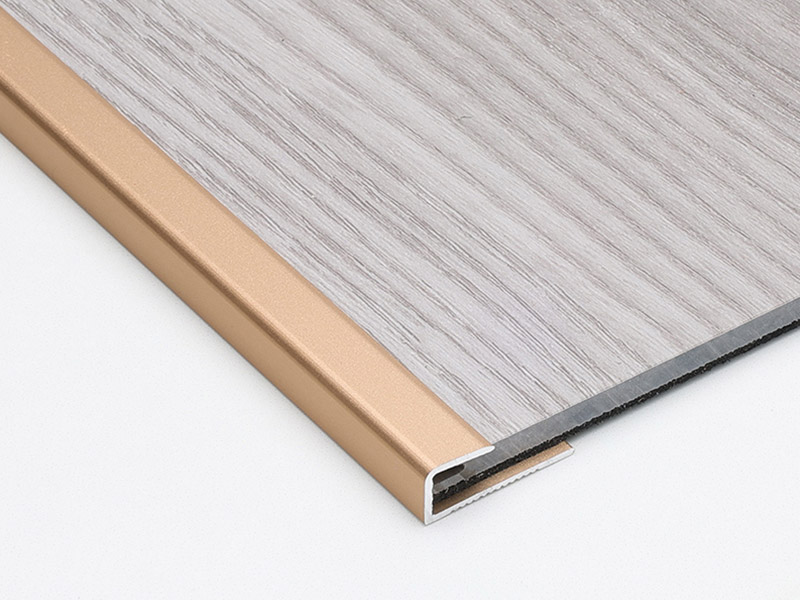

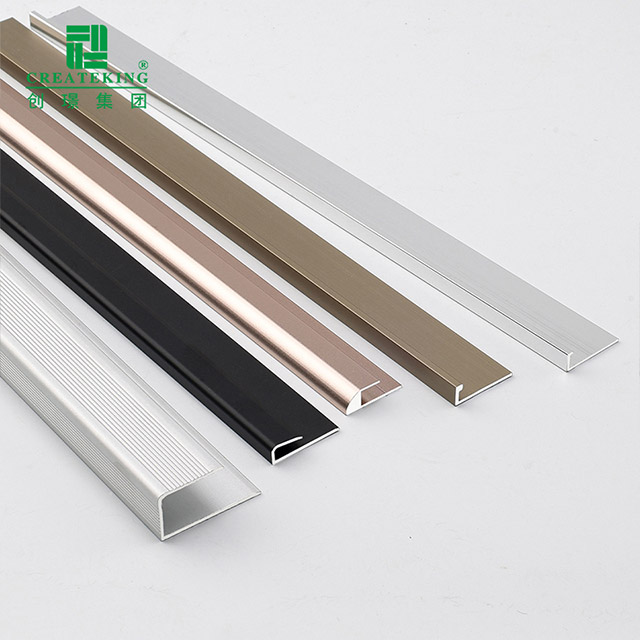

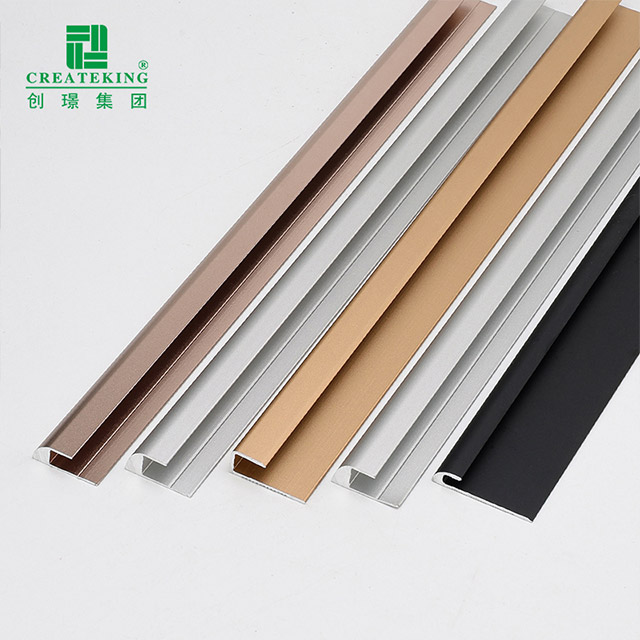

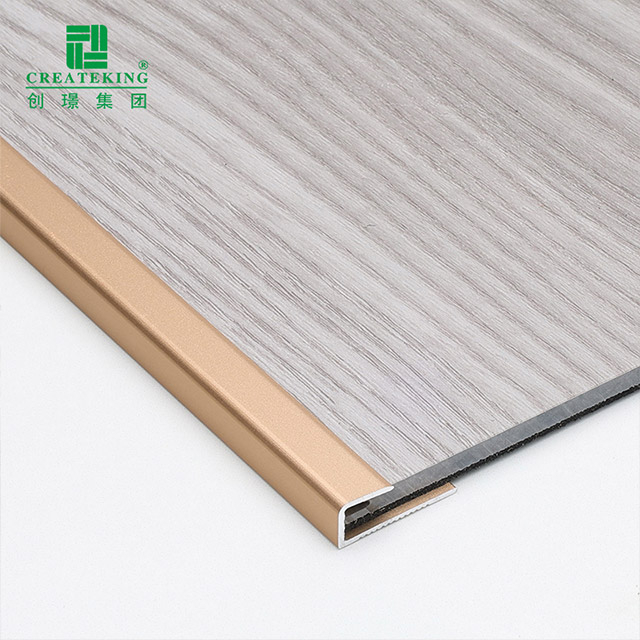

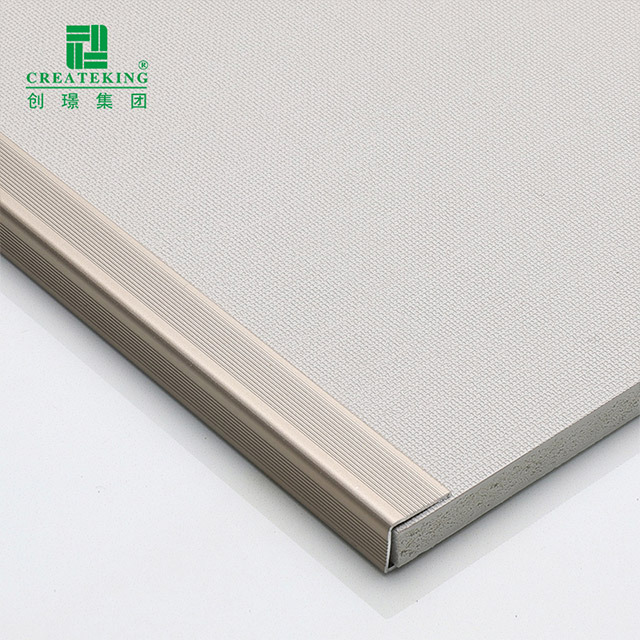

The C-shaped floor edge strip (Model No.: NFC305) is a simple yet sophisticated edge treatment solution for 5mm thick SPC flooring. Made from premium aluminum alloy, it combines strength and aesthetics. The C-shaped profile with a concave top perfectly conforms to the flooring edge, providing excellent protection. Its clean, metallic appearance adds a touch of sophistication to the otherwise plain SPC flooring. Whether in residential or commercial spaces, the metal floor edge strip offers exceptional durability and minimal maintenance. It's the perfect choice for edge protection and finishing of 5mm thick SPC flooring.

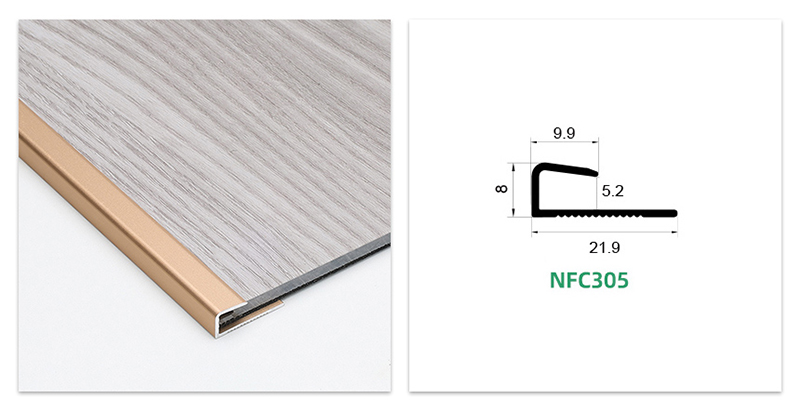

| Product Name | 21.9x5.2mm C-shaped Floor Edge Strip |
| Model No. | NFC305 |
| Material | 6063 T5 Aluminum Alloy |
| Color | Black, Silver white, Titanium gold, Champagne, Rose gold |
| Length | 2700mm |
| Width | 21.9mm |
| Height | 5.2mm |
| Surface Treatment | Anodizing/Spraying |
| Application | For 5mm thick SPC flooring |
Structural Strength and Durability: Aluminum alloy is stronger and more durable than wood or plastic. Even under high-frequency use, it maintains structural stability for extended periods, resisting deformation or wear from foot traffic.
Moisture and Corrosion Resistance: Flooring is susceptible to stains, dust, and other substances. The delicate edges of SPC flooring, in particular, require special protection. This C-shape floor edge strip not only boasts a refined appearance but also provides robust protection.
Simple Appearance: Its minimalist "C" shape and rounded edges eliminate gaps, creating a smoother, more seamless visual effect.
Easy Installation: C-shaped metal edge banding is easy to install. Typically, simply apply adhesive to the C-shaped groove of the edge banding and insert it into the floor.

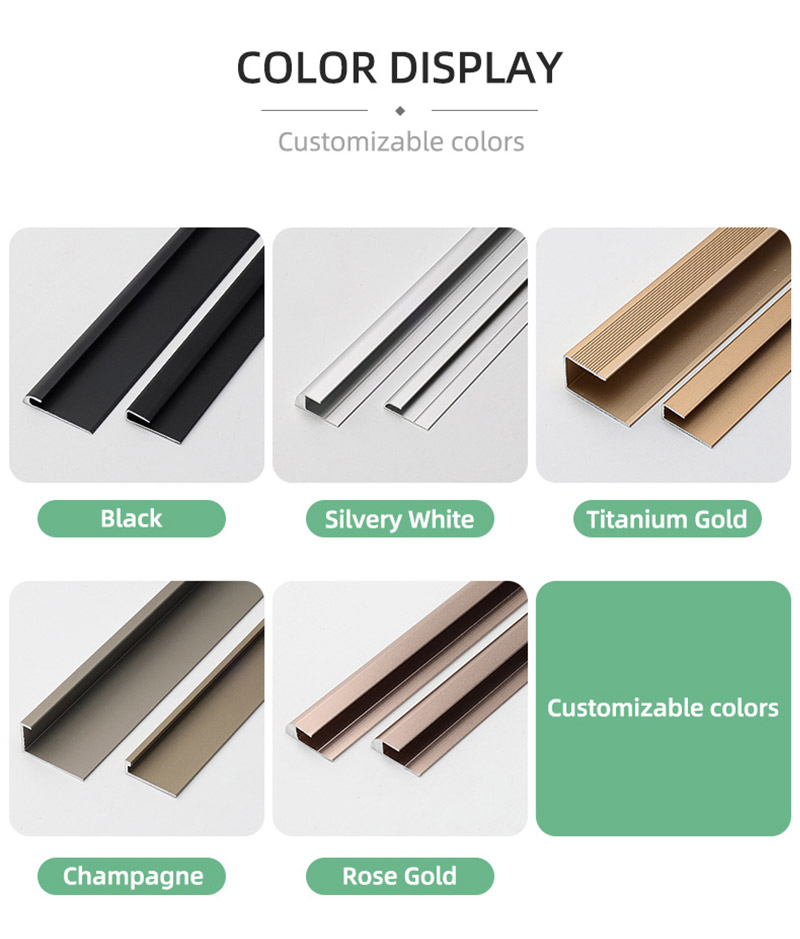

Custom Colors: Common colors include black, silver, titanium, rose gold, and champagne gold. Other colors can also be customized upon request.

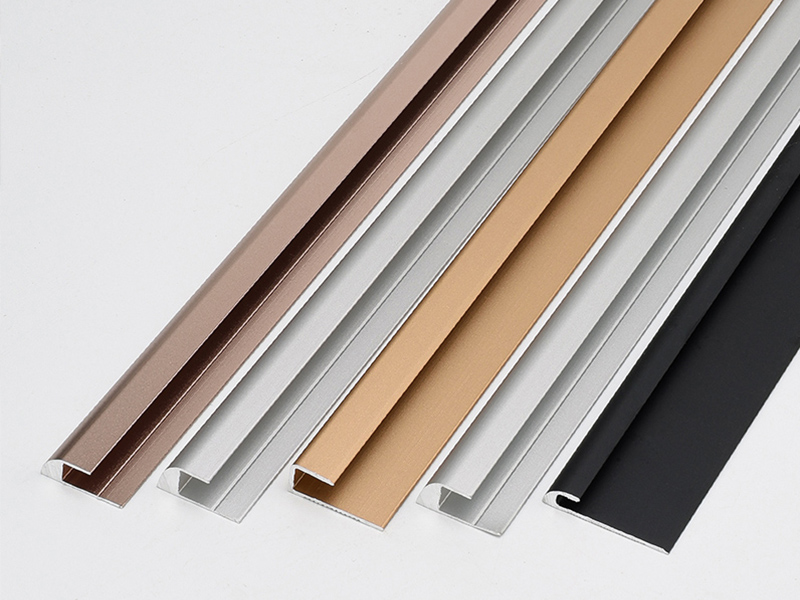

C-shaped floor edge strips can be anodized or painted and are available in a variety of colors, such as the common black, silver, titanium, rose gold, and champagne gold. Polishing gives the edging strips a mirror finish, while mechanical grinding creates a brushed texture. Homeowners can personalize their selection to suit their needs.

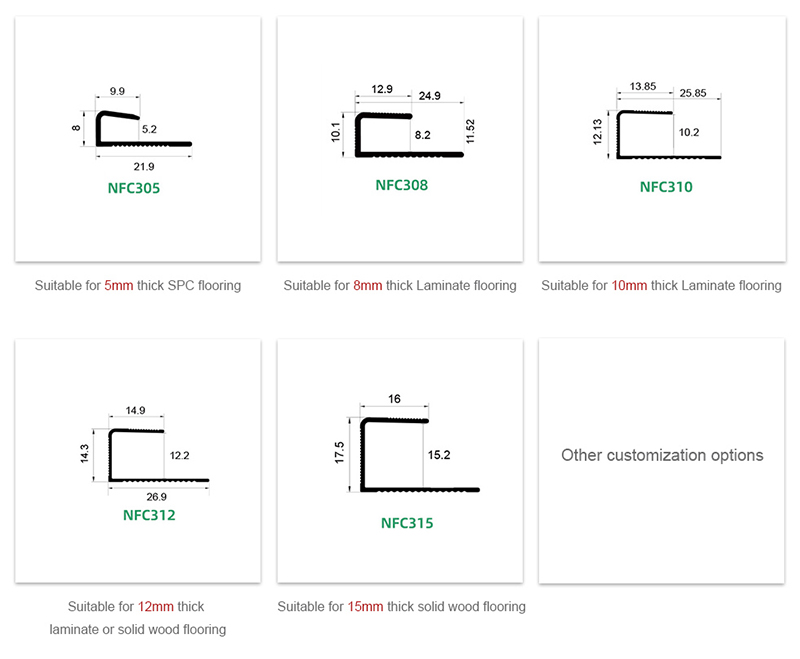

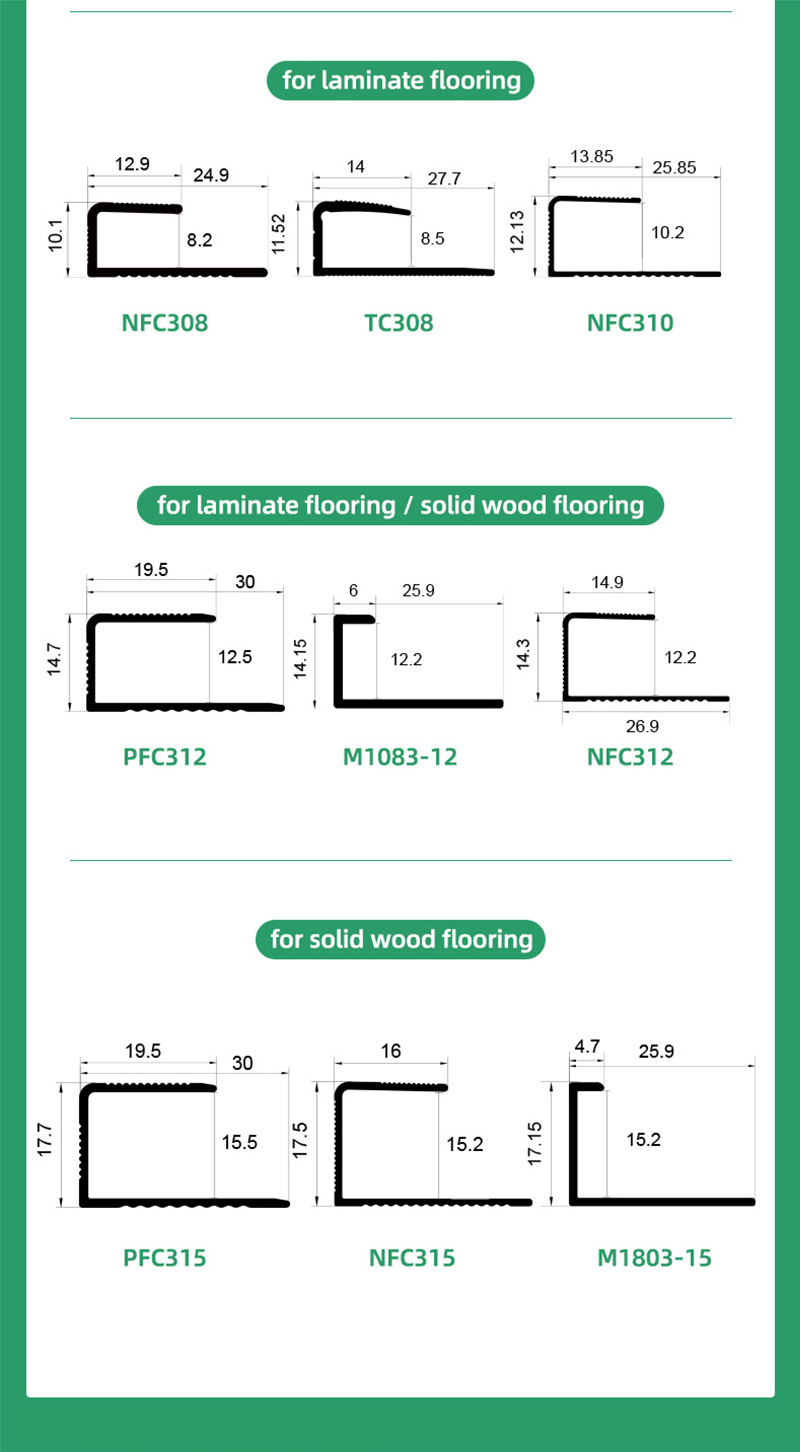

The C-shaped floor edge strip (Model No.: NFC305) is a profile specifically designed for 5mm thick SPC flooring. If your flooring is of a different thickness, you can select the appropriate thickness according to the table below. Alternatively, click the "Consult" button to contact the CREATEKING expert team for assistance.
| Model No. | Wall Thickness(mm) | Theoretical Weight(kg/m) | Applicable Floor Thickness(mm) | Applicable Flooring Types |
| NFC305 | 0.9 | 0.085 | 5 | SPC Flooring |
| NFC308 | 0.8 | 0.088 | 8 | Laminate Flooring |
| NFC310 | 0.9 | 0.1 | 10 | Laminate Flooring |
| NFC312 | 0.9 | 0.118 | 12 | Laminate Flooring or Solid Wood Flooring |
| NFC315 | 1.0 | 0.146 | 15 | Solid Wood Flooring |
