Carbon Crystal Wall Panels are highly effective for bathrooms and show exceptional durability in general shower wall installations when installed using appropriate high-durability adhesive polymers and fully integrated tongue-and-groove joint sealants. Their dense micro-porous bamboo-charcoal composite core exhibits less than 0.2 percent water absorption, rendering the material impervious to structural swelling, mold contamination, surface delamination, and steam degradation.

At a Glance

Bathroom Wall Application Overview

Carbon crystal wall panels represent a highly durable, technically advanced decorative wall cladding solution uniquely optimized for challenging, high-moisture interior bathroom walls.

Interior architectural designers, technical specifiers, and global commercial builders consistently demand wall materials that combine high structural integrity with minimal maintenance. The core structural formulation of carbon crystal wall panels utilizes advanced co-extrusion principles, fusing refined activated bamboo charcoal powders, high-density PVC/PE polymer matrix materials, calcium carbonate stabilizers, and nano-crystal additives. This multi-layered architecture creates a dense, hydrophobic composite panel that eliminates traditional dynamic structural failure points caused by atmospheric vapor and liquid contact.

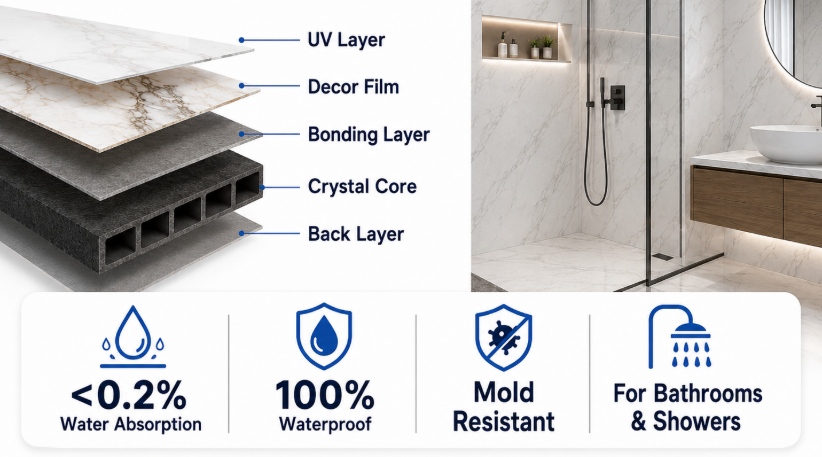

Understanding the internal layering mechanism helps illustrate why this structural profile succeeds in hostile moisture environments where traditional wall options fail:

1. Wear-Resistant UV Surface Layer: High-clarity top coat providing scratch-proofing, chemical resistance, and direct liquid repelling capabilities.

2. Decorative Thermal Transfer Foil: Ultra-high definition aesthetic film delivering authentic marble, solid wood, metallic, or tactile concrete surface visual characteristics.

3. Co-Extruded Polymeric Bonding Interface: High-adhesion tie-layer designed to eliminate delamination risks under cyclic thermal stress.

4. Engineered Carbon Crystal Core Substrate: High-density micro-porous bamboo-charcoal polymer composite core that provides structural rigidity, impact resistance, and dynamic vapor isolation.

5. Hydrophobic Backing Surface: Smooth structural back-plate optimized for structural structural adhesive cross-linking and backing vapor resistance.

Our engineering team specifically engineered this high-density core configuration to solve field challenges commonly found with traditional fiber cement, gypsum core, and standard wood-plastic composite profiles. When examining What Are Carbon Crystal Wall Panels from a materials science perspective, the inclusion of micro-fine activated carbon within the polymer matrix disrupts capillary action pathways, effectively blocking micro-moisture movement throughout the internal board structure. European commercial procurement officers consistently favor this solid core design because it avoids the internal voiding found in hollow WPC profiles, eliminating cold spots where vapor condensation can collect inside walls.

Technical Maintenance Tip: To clean carbon crystal surfaces in commercial facilities, use non-abrasive, neutral pH surface cleaners (pH 6 to 8). Avoid strong aromatic hydrocarbon solvents, concentrated acetone, or abrasive scrub pads, which can dull the engineered UV surface protective finish over extended maintenance lifecycles.

Are Carbon Crystal Wall Panels Suitable for Bathrooms?

Yes, carbon crystal wall panels are perfectly suited for bathroom installations due to their complete immunity to vapor absorption, superior dimensional stability, and mold-resistant surface chemistry.

Bathrooms generate extreme, highly dynamic environmental conditions characterized by sudden thermal shifts, continuous high relative humidity (RH 80% to 100%), and direct airborne moisture contact. Traditional interior wall materials like paper-faced gypsum board, medium-density fiberboard (MDF), and softwood plywood absorb airborne water vapor, leading to dimensional expansion, core rot, paper bond degradation, and paint peeling. Carbon crystal wall panels utilize fully hydrophobic polymer matrices and non-organic structural fillers, ensuring that high relative humidity causes zero dimensional swell, edge deformation, or structural breakdown over decades of daily exposure.

To evaluate material behavior under typical bathroom stress factors, consider the following structural performance characteristics:

1. Complete Hydrophobic Core Mechanics: Non-hygroscopic core chemistry prevents capillary liquid absorption and vapor accumulation within the inner substrate layer.

2. Mold and Bacteria Immunity: Inert inorganic material compositions deny biological nutrients to mold, mildew, and airborne fungal spores, preventing mold-driven indoor air degradation.

3. Rapid Surface Vapor Evaporation: Super-smooth, low-surface-energy protective coatings encourage rapid water sheeting and fast evaporation, preventing surface dynamic water-stain build-up.

4. Thermal Shock Resistance: Exceptional tolerance to cyclic temperature changes from hot steam showers followed by cool ventilation airflow without warping or surface crazing.

When evaluating global market preferences, commercial developers operating in humid, temperate, or tropical marine climates heavily favor these panels over conventional ceramic tiles. Traditional tile systems rely heavily on cementitious grout lines, which absorb organic residue, darken over time, crack under subtle building settling, and foster hidden mold growth within wall cavities. Carbon crystal panels present large-format coverage with tight mechanical click or tongue-and-groove joints, minimizing exposed seam lines and dramatically reducing maintenance overhead in high-turnover hospitality environments.

From an engineering perspective, our product design incorporates an optimized density balance (1.05 g/cm³), allowing these panels to remain lightweight while offering exceptional high-impact resistance. European trade distributors frequently highlight that our lightweight design speeds up field handling, cuts transport emissions, and allows single-installer mounting on vertical bathroom studs or existing flat masonry surfaces without structural reinforcement.

Technical Operating Principle: The operational effectiveness of activated bamboo charcoal particles within the extruded matrix relies on ultra-high surface area micro-porosity locked into a dense polymer resin. This creates an internal structural network that absorbs micro-vibrations, dampens acoustic transmission, and maintains structural integrity across extreme ambient operating temperature ranges.

Waterproof and Moisture-Resistant Performance

The waterproof performance of carbon crystal wall panels is achieved through high-pressure hot-melt co-extrusion technology, which creates a totally dense, closed-cell polymer structure with a certified 24-hour water absorption rate below 0.2 percent.

To understand true waterproofing in wall panel manufacturing, one must distinguish between superficial surface water resistance and core liquid imperviousness. Many market panels claim "water resistance" simply because they feature a laminated surface film, yet their internal cores remain susceptible to water ingress through unsealed cut edges, screw penetrations, and micro-fissures. Carbon crystal panels feature a uniform, fully hydrophobic core, meaning that even when cut, drilled, or grooved on site, the exposed core edges remain naturally repellant to liquid water, steam, and ambient atmospheric moisture penetration.

Our structural formulation leverages specialized coupling agents that bind inorganic mineral fillers and organic charcoal carbon particles directly into the dense polymer phase. This eliminates microscopic voids between material grains, blocking moisture diffusion pathways. In comparative pressure-chamber testing, our Carbon Crystal Wall Panels maintained structural integrity without delamination, core softening, or density reduction after continuous immersion under 2 meters of hydrostatic water head for 30 consecutive days.

1. Hydrophobic Co-Extrusion Layering: The surface wear-layer and core substrate are fused together at high temperatures (180°C to 210°C) without liquid glues, preventing core-delamination in high-humidity applications.

2. Low Linear Expansion Index: Low thermal expansion characteristics maintain tight joint compression across changing room temperatures, preventing micro-gaps that permit moisture ingress.

3. High Surface Energy Water Repellency: Engineered surface finishes yield a liquid contact angle above 85 degrees, encouraging water beads to slide off vertical surfaces rather than setting on the panel.

4. Chemical Vapor Inertness: The non-porous structure is impervious to common bathroom vapors, aerosolized soaps, shampoo chemistries, and alkaline municipal water supplies.

In multi-family residential developments across Western Europe, engineering consultants prioritize panels with proven chemical vapor inertness. Regular exposure to chlorine vapor, aerosolized soaps, hot water condensation, and cleaning chemicals causes standard painted walls or lower-grade laminate sheets to oxidize, yellow, and lose structural surface integrity. Carbon crystal panels resist chemical breakdown, ensuring that high-humidity hotel and residential bathrooms retain their original finish without requiring repainting or surface refinishing.

Installation Precision Tip: When trimming panels to accommodate wall penetrations, plumbing pipes, or electrical fixtures, always use high-tooth carbide-tipped saw blades (60 to 80 teeth). Clean cut edges cleanly, and apply a thin layer of continuous neutral-cure silicone around pipe penetrations to block water from bypassing the panel face into the back substrate frame.

Can Carbon Crystal Wall Panels Be Used for Shower Walls?

Carbon crystal wall panels can be successfully installed as direct shower enclosure walls, provided that high-grade elastic adhesive polymers and high-performance continuous sealant systems are correctly applied across all joints, perimeter edges, and floor-to-wall transitions.

Direct shower enclosures represent the absolute most demanding wet environment in interior architecture, exposing surfaces to high-velocity hot water impact, soap scum accumulation, continuous dynamic water pooling, and heavy daily steam exposure. While the carbon crystal board itself is 100% waterproof and physically immune to water degradation, direct shower wall success relies on system-level waterproofing—specifically maintaining complete, long-term seam sealing at panel-to-panel connections and critical base junctions.

To ensure long-term, fail-safe performance within direct wet shower zones, field installers must adhere to a strict mechanical installation sequence:

1. Substrate Backing Preparation: Ensure behind-wall backing studs or cement boards are plumb, clean, dry, and coated with a continuous membrane liquid barrier before panel adhesion.

2. Solid Perimeter Wall Tanking: Apply full perimeter waterproofing tape along internal wall corners, floor-to-wall transitions, and surrounding shower tray containment flanges.

3. Continuous Rear Adhesive Application: Apply high-grab MS Polymer or polyurethane structural mounting adhesive using vertical bead patterns spaced 100mm to 150mm apart to permit back air evacuation while securing total surface bond coverage.

4. Interlocking Joint Micro-Sealing: Inject a continuous bead of clear, neutral-cure, anti-fungal sanitary silicone sealant directly into the female groove of the interlock joint before engaging the male tongue.

5. Base and Corner Perimeter Isolation: Maintain a 2mm to 3mm expansion gap at the floor flange and vertical corner profiles, completely packing this joint space with high-grade elastomeric silicone sealant.

Our product design team purposefully engineered an extended hidden interlocking tongue connection profile tailored specifically for wet-zone requirements. This engineered overlap creates a mechanical baffle that prevents water from penetrating through the joint via wind or pressure, while concealing structural stainless steel mounting clips beneath the joint face. European contract installation partners frequently emphasize that this interlocking mechanism slashes direct shower wall installation labor time by up to 65% compared to traditional ceramic tile setting, eliminating mess, grout preparation, curing wait times, and multi-day site visits.

By specifying engineered Carbon Crystal Wall Panels within direct wet-shower zones, commercial building operators gain a durable, visually stunning, large-format surfacing solution that resists physical impacts, prevents structural mold growth, and provides long-term operational reliability across demanding wet application environments.

Product Technical Summary and Field Recommendations

Carbon crystal wall panels offer an exceptional combination of physical durability, aesthetic design versatility, fast installation, and structural waterproofing performance. By replacing multi-step, wet-trade traditional plastering, tiling, and grouting processes with a unified, lightweight composite surfacing material, project managers reduce labor overhead while delivering reliable dynamic moisture barrier protection. When installed according to recommended physical joint sealing practices, carbon crystal panels provide a premium, low-maintenance decorative solution optimized for residential, hospitality, healthcare, and commercial bathroom environments worldwide.
