WPC wall panels have become the preferred solution for modern home and commercial space decoration and design – not only because of their durability and aesthetics, but also because of their convenient installation system.
However, the real test of WPC wall panels lies in the quality of their installation. Proper installation ensures they maintain their stability, refined appearance, and resistance to deformation for many years.
This guide will take you through everything you need to know about installing WPC wall panels, from preparation to the final finish, whether you are a contractor, designer, or DIY enthusiast.
Correct installation means proper surface preparation, a compatible fixing system, and reasonable stress distribution. Whether using structural adhesive, a keel system, or metal clips, proper construction ensures a stable connection between the wall panel and the substrate, effectively preventing problems such as loosening, hollowing, deformation, or detachment later on, and maintaining reliable structural safety of the wall during long-term use.
WPC wall panels are typically installed over large areas, and even the slightest error can affect the final visual result.
Precise measurement, leveling, and standardized splicing methods ensure uniform wall panel seams and consistent texture.
Professional installation allows for adequate expansion and contraction space in the wall panels, preventing internal stress caused by thermal expansion and contraction, and reducing the risk of cracking, arching, and warping from the outset.
Furthermore, professional wall panel installation prevents moisture from entering through gaps, allowing WPC wall panels to maintain stable performance in complex environments for many years.
Professional installation ensures that WPC wall panels are less prone to detachment and damage, significantly reducing the frequency of later repairs and replacements.
This means you can save on maintenance costs, reduce rework, and minimize hidden costs associated with material waste. This is especially important for engineering projects.
Tool Name | Function |
Measuring Tape | Accurate measurement of wall dimensions, panel lengths, and installation spacing ensures precise cutting and layout. |
Chalk Line | Mark the lines on the wall to help maintain the straightness and overall level of the wall panel installation. |
Spirit Level / Laser Level | Align the horizontal and vertical alignment to ensure the wall surface is flat and the panel seams are neat. |
Circular / Fine-tooth Saw | Cut the wall panels and keel to ensure straight cuts and precise dimensions. |
Angle grinder/sandpaper | Grinding the cut edges improves splicing accuracy and safety. |
Construction Adhesive | Enhances the adhesion between the wall panel and the substrate, distributes stress, and improves long-term stability. |
Glue gun | Apply structural adhesive evenly and in a controlled manner |
Stainless Screws | Secure the keel, base, or clip system to construct a stable foundation structure. |
Metal clips / fastening system | As a connecting tool between wide wall panels. |
Electric drill/impact drill | Drilling holes, installing screws, and fixing the base structure. |
Screwdriver / Electric screwdriver | Used for tightening screws. |
Utility knife | Trim the wrapping film, cut the edge finishing material, and protective film. |
Vacuum cleaner/brush | Cleaning the base layer and construction dust |
Soft cloth/towel | Cleaning wall panels |
Protective gloves/goggles/dust mask | Ensure construction safety and prevent injuries from cutting dust and tools. |
Wall Cleaning
Before any installation begins, the wall surface must be thoroughly cleaned to remove dust, oil, loose particles, and residue of old coating.
A clean substrate is crucial not only for the bonding strength of the structural adhesive but also for the stability of the metal clips and fastening system. Even a small, overlooked impurity can become a potential source of future problems, such as hollow spots, detachment, or localized deformation.
Wall Leveling
WPC wall panels require a stable and flat substrate. Minor cracks, holes, or unevenness should be repaired and leveled before installation to ensure a smooth surface.
Keep walls dry
Even WPC materials with excellent waterproof properties should not be installed on damp or unstable walls. Residual moisture in the substrate can lead to mold growth, adhesive failure, or corrosion of the joists.
Ensure the wall surface is completely dry before installing wall panels to prevent problems such as bulging, delamination, and unpleasant odors later on.

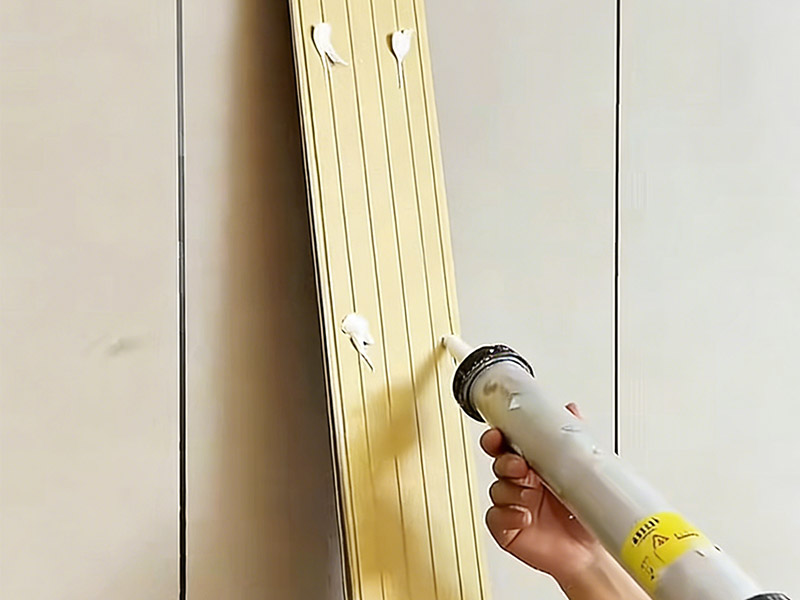

Under flat and stable substrate conditions, WPC wall panels can be directly bonded using high-strength structural adhesive.
During application, the adhesive can be applied in continuous strips or evenly distributed on the back of the panel in a grid pattern to ensure more even stress distribution.
After precisely positioning the panel, press firmly to secure it, ensuring the adhesive layer makes full contact with the wall and forms an initial bond, laying the foundation for subsequent stable curing and long-term durability.

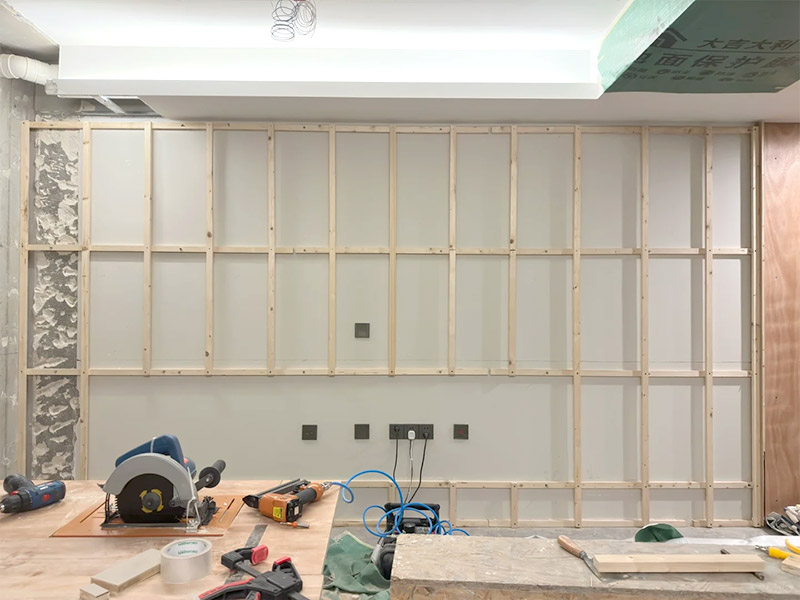

When the wall surface is uneven or structural space needs to be reserved, first construct a metal or wood joist system to form a stable and level installation base.
This frame not only corrects wall defects but also provides support for wiring and expansion joints. Then, use screws or concealed clips to secure the WPC wall panels to the joists, resulting in a robust, aesthetically pleasing, and easy-to-maintain wall system.
Many modern WPC wall panels employ interlocking or concealed snap-fit structures, integrating the fixing system into the back of the panel to achieve a screwless installation.
Furthermore, the modular snap-fit structure makes disassembly and replacement more efficient, providing flexibility for long-term maintenance and upgrades.

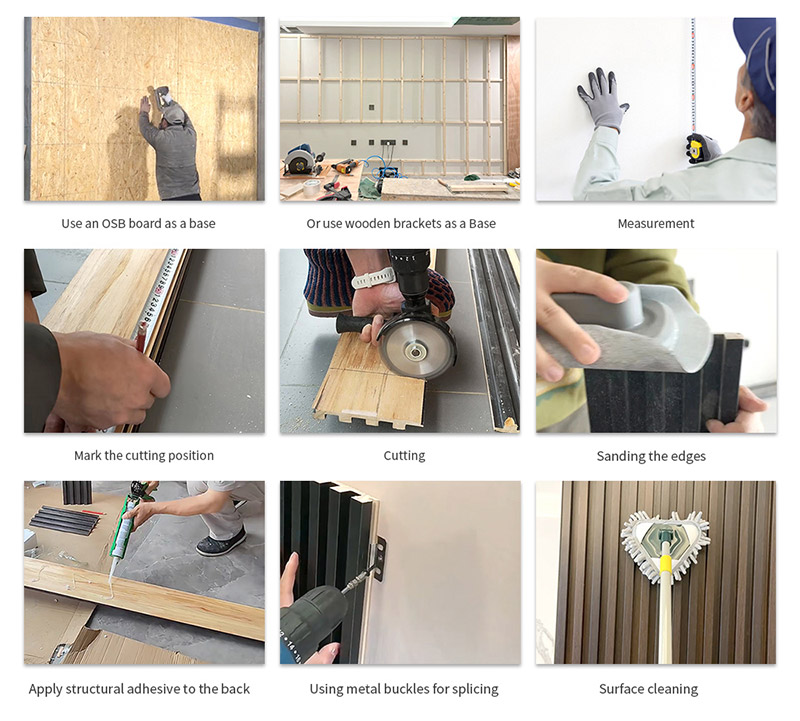

Before formal installation, the laying direction of the wall panels should be clearly defined, and a reference starting line should be marked on the wall using a level and chalk lines.
The first wall panel acts as the "structural generatrix" of the entire wall; its levelness and verticality directly determine the alignment accuracy and overall appearance of subsequent panels, making it the most crucial step in the entire process.
Precisely measure the length of the panels according to the wall dimensions and cut them using a fine-toothed saw to obtain a smooth, clean cut.
After cutting, meticulously sand the edges to improve splicing accuracy and safety. Simultaneously, pre-drill holes for sockets, light fixtures, and fasteners before formal installation to ensure smooth subsequent construction and a clean, complete finish.
Construction should begin at a corner or a pre-aligned starting edge, with initial edge trim installed if necessary to establish a stable reference.
The first wall panel must be precisely aligned and securely fixed; it determines the overall line and finish of the wall.
Depending on the chosen installation system, secure each wall panel individually using structural adhesive, screws, or concealed clips, ensuring precise positioning and a reliable connection.
When installing over a large area, consciously leave necessary expansion joints to absorb material deformation caused by temperature differences and environmental changes, thus ensuring long-term structural stability and a smooth surface.
Wall panel transitions: CREATEKING's WPC wall panels typically employ precise mortise and tenon joints or interlocking structures, allowing the panels to naturally interlock and form a clean and continuous architectural surface.
For wide wall panels, metal clips not only serve a connecting function but also conceal structural seams, maintaining the visual integrity and cleanliness of the wall surface while ensuring long-term stability and flatness.
Wall panel edge treatment: The edges are the final touch that determines the overall finish. Installing PVC or aluminum alloy edge trim strips effectively closes the cuts, refines the edge lines, and provides structural protection for impact-prone areas.
Post-installation inspection: Focus on checking that the wall panel joints are tight and straight, the surface is flat and smooth, and the edge trims and corners are neat and clean.
Wall panel surface cleaning: Remove the protective film from the wall panel surface. Gently wipe the surface with a soft, dry cloth or slightly damp towel. If necessary, use a soft-bristled brush to clean any debris from the gaps.
Avoid using corrosive cleaning agents to prevent damage to the finish and allow the wall panels to display their proper texture and shine.
Common errors | Professional Explanation | Solution |
The wall surface was not pre-treated | The walls have problems such as dust, oil stains, unevenness, or dampness. | Before installing WPC wall panels, the wall surface should be leveled, cleaned, and kept dry. |
Wall panels installed without adaptation treatment | The WPC that has not been properly adapted to the ambient temperature and humidity is prone to cracking, warping, or changes in seams later on. | Place the wall panels on site for at least 24–48 hours before construction. |
Ignore leveling lines | Inaccurate starting lines will cause the entire wall panel to be crooked and the joints to be misaligned. | Use a level and chalk line to determine the precise starting baseline. |
Using incompatible adhesives | Insufficient adhesion may cause the wall panels to fall off. | Use the high-strength adhesive recommended by the supplier. |
No expansion joints were provided between the wall panels | The lack of expansion joints can cause wall panels to bulge or crack when the temperature changes. | Leave room for expansion during installation. |

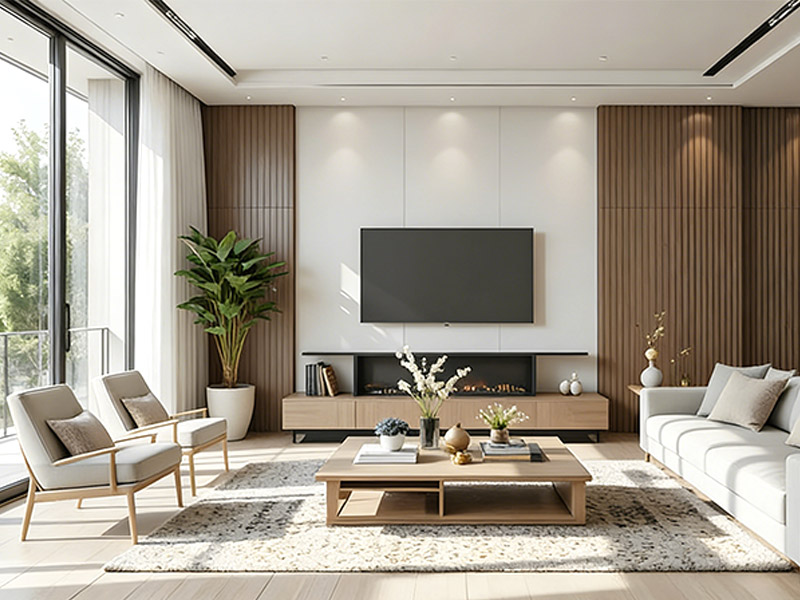

As a building finish designed for long-term use, WPC wall panels require gentle and regular cleaning and maintenance.
Daily maintenance simply involves wiping the surface with a soft, damp cloth or neutral detergent to remove dust and everyday stains; no waxing or oiling is necessary.
Avoid using strong acids, alkalis, or abrasive cleaning tools, as these may damage the surface structure.
Regularly inspecting the joints and edges and promptly removing accumulated dust and moisture will effectively extend the wall panels' appearance and overall lifespan.
CREATEKING wall panels emphasize design and durability, but their true value is realized through proper installation.
By preparing before installation and using professional installation methods and meticulous finishing touches, these WPC wall panels deliver a refined finish and lasting durability.
