Carbon crystal wall panels have become a mainstream choice for contemporary interior decoration, not because they are "trendy," but because they solve the long-standing structural and efficiency problems of traditional wall materials. They are lighter yet more stable; faster to install without sacrificing texture; moisture-proof and durable, yet still maintain a high level of decorative expression. But remember—materials are only one part of the system. What truly determines the final effect is never the panel itself, but whether the installation logic is correct.
This guide doesn't stop at the surface steps, but guides you to understand the construction structure behind carbon crystal wall panels: from tool and material preparation to adaptation methods for different wall surfaces; from corner treatment to curved wall shaping; from splicing systems to edge finishing details.
Whether you are a contractor, a designer, or a homeowner with high-quality requirements, what you need is not "how to put it on," but how to build a stable, refined, and sustainable wall system. This is the core of professional installation.
If we understand it from a structural perspective, carbon crystal wall panels are not simply decorative panels, but rather a systematically designed wall solution. It uses a polymer substrate as its core, enhances overall stability and impact resistance through a carbon crystal reinforcement layer, and then layers different finishes to achieve a balance between function and aesthetics. In other words, it doesn't exist solely for aesthetics, but to find a more rational intersection between strength, efficiency, and visual expression.
This is why it is widely used in residential spaces, commercial venues, and renovation projects. Waterproof, lightweight, easy to install, and low-maintenance are not marketing terms, but natural results of an optimized construction system. When a space requires faster construction, more stable structural performance, and more controllable long-term maintenance costs, carbon crystal wall panels become a logical choice.
Proper preparation determines installation success. Rushing this stage leads to hollowing, misalignment, or edge cracking.
Materials and Tools Checklist
1. Carbon crystal wall panels
2. Structural adhesive or construction adhesive
3. Interface agent (for concrete walls)
4. OSB board or plywood (if using base layer)
5. Wooden battens (for framing)
6. Metal trim strips
7. Nail gun
8. Laser level or spirit level
9. Measuring tape
10. Cutting machine
11. Heat gun
12. Pneumatic nail gun
13. Caulking gun
14. Putty knife
15. Sandpaper
Protective equipment
1. Safety goggles
2. Dust mask
3. Cut-resistant gloves
4. Noise-cancelling earmuffs
Step 1: Repair Uneven Areas. Use putty or cement mortar to level the surface, ensuring the wall surface error is controlled within 3mm.
Step 2: Apply a bonding agent. Enhance the adhesion of the substrate and prevent hollow spots later.
Step 3: Apply adhesive to the back of the wall panels. Apply structural adhesive evenly in an "S" shape or dot pattern.
Step 4: Use metal I-beams to connect the panels, ensuring the stress distribution and stability of the joints.
Step 5: Secure the metal decorative strips with a pneumatic nail gun to enhance structural strength and finish the edges.
Step 6: Construct simple fixed supports. Install temporary supports for a short period after construction to prevent panel slippage.
Step 1: Measure and level the wall surface.
Step 2: Use wooden strips to create a framework, with a recommended spacing of 30-40cm to ensure even stress distribution.
Step 3: Secure the framework with a pneumatic nail gun.

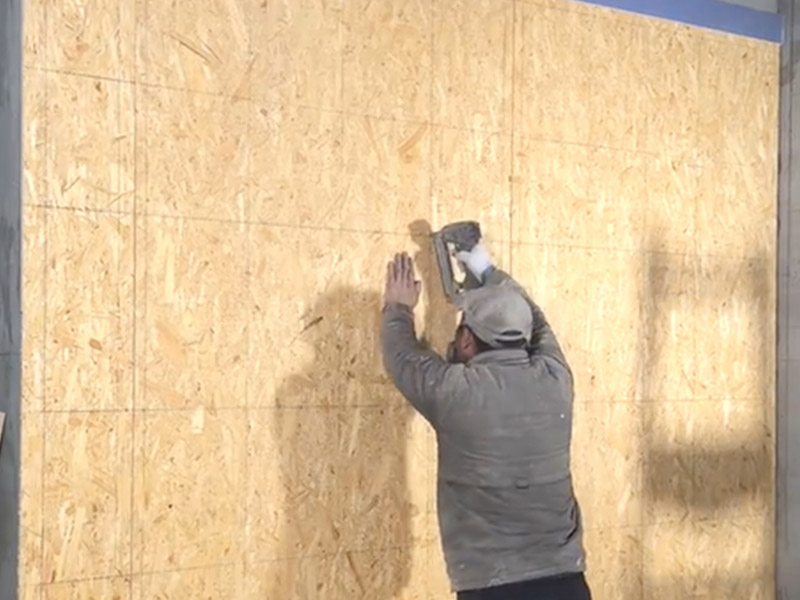

Step 4: Lay the OSB board flat on the framework and secure it.
Step 5: Apply adhesive to the back of the carbon crystal board.
Step 6: Lay the board flat on the wall and secure it with a nail gun along the edges.
Step 1: Cut a V-groove on the back of the wall panel.
Step 2: Evenly heat the grooved area using a heat gun.
Step 3: Apply structural adhesive to the back of the wall panel.
Step 4: Fold the wall panel at a 90° angle.
Step 5: Install against the wall.
Step 6: Secure the edges with pneumatic nails.
Step 1: Create a curved transition base using plywood.
Step 2: Cut multiple parallel grooves on the back of the carbon crystal panel.
Step 3: Evenly heat the grooved areas with a heat gun.
Step 4: Apply structural adhesive to the back of the wall panel.
Step 5: Bend and adhere the panel to the wall surface.
Step 6: Reinforce the edges of the wall panel using pneumatic nails.

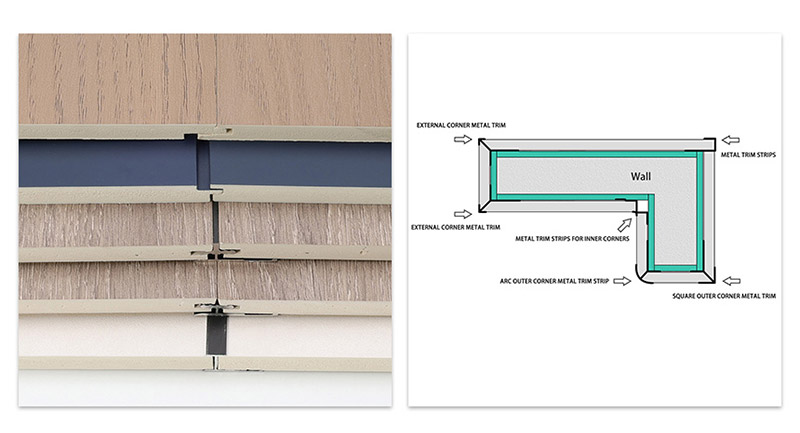

1. The wall panels are directly spliced after the edges are grooved with mortise and tenon joints.
2. Metal decorative strips are used to connect the wall panels.
3. Metal decorative strips are used to connect the external and internal corners.
1. Avoid direct application to damp walls.
2. Use environmentally friendly adhesives that meet standards.
3. Maintain an ambient temperature above 5℃.
4. Allow the panels to stand for 24 hours after arrival to acclimate to the environment.
5. Allow space for thermal expansion and contraction during installation.
6. For large-area installations, it is recommended to proceed in sections.
To achieve near-perfect installation results, besides focusing on the inherent qualities of the carbon crystal panel itself, the key lies in adhering to the rigorous installation system behind it.
Whether choosing direct adhesion to rough wall surfaces, using a joist support system, or handling external corners and curves, all construction methods follow the same logic—a stable base, balanced stress distribution, and flawless edge treatment.
Only by correctly establishing structural relationships can the material's performance be truly realised. Installation is not simply "attaching to the wall," but rather a precise grasp and meticulous control of the structural order.
Q1: How To Install Carbon Crystal Wall Panels
A1: Installing carbon crystal wall panels is not about simply applying adhesive and pressing them onto a surface. It begins with one essential principle: build a stable foundation. The wall must be clean, dry, and level.
From there, choose the correct installation method—direct bonding for flat concrete, or a framed base system for uneven walls or concealed wiring.
Apply structural adhesive evenly, control alignment with precision, and leave proper expansion gaps. Corners and edges require deliberate finishing, not improvisation.
When installed with structural discipline, carbon crystal panels perform exactly as designed—clean, durable, and architecturally refined.
Q2: How do you prepare the wall before installation?
A2: Begin by cleaning and levelling the wall surface. Remove dust, old paint, or loose plaster.
If uneven, use wooden battens or levelling material to achieve a flat substrate.
Mark vertical and horizontal layout lines with a level before fixing panels.
Q3: What is the basic installation process for carbon crystal wall panels?
A3: Apply adhesive evenly on the panel back in a zigzag or grid pattern. Align with your marked starting point, press firmly against the wall, and tap gently with a rubber hammer to bond. Install panels sequentially, ensuring edges are flush and level.
Q4: Do carbon crystal wall panels require a frame or keel system?
A4: Not always. For flat, solid walls, panels can be directly adhered. If the wall is uneven or requires hidden wiring, install a wooden or metal keel (frame), then attach panels to the keel with screws or clips.
Q5: How should carbon crystal wall panels be cut and fitted?
A5: Measure the wall area precisely, then cut panels to size with a saw. Smoothing rough edges with sandpaper improves fit. Dry-fit panels before installing to verify layout, especially around corners, openings, or obstacles.
Q6: What are the best practices for corner and edge finishing?
A6: Use metal or plastic edge trims along perimeter edges and corners to create refined transitions. These trims protect edges from damage and improve visual continuity between wall panels and adjacent surfaces.
