Carbon Crystal Wall Panels are engineered composite boards composed of micro-milled bamboo charcoal particles, co-extruded high-molecular PVC resin, solidifying agents, and multi-layer decorative protective films unified under high-pressure thermal processing.
The core material science behind modern carbon crystal technology represents a significant evolution over traditional solid wood, density fiberboard, and basic PVC cladding systems. Through high-temperature co-extrusion manufacturing, sub-micron activated carbon particles and bamboo charcoal fibers are homogenously blended with virgin PVC resin. This dense matrix creates a rigid composite structure that offers near-zero water absorption, high flexural strength, and exceptional mechanical stability. When evaluating these panels for commercial projects, engineers must understand that the term "carbon crystal" refers to the crystalline matrix formed when micro-carbon particles align within the polymer binder, significantly increasing compressive resistance while maintaining low volumetric weight.
In our technical testing laboratories, we closely observe the structural difference between low-density recycled core composites and premium co-extruded boards. To understand the baseline engineering principles, project planners should review What Are Carbon Crystal Wall Panels to gain a complete breakdown of raw material ratios and molecular polymer cross-linking. Why is the core designed with micro-porous charcoal inclusions? In practical commercial interiors, this internal microstructure actively absorbs residual ambient micro-vibrations, provides minor thermal barrier properties, and prevents internal shear stress accumulation during sudden ambient temperature fluctuations.

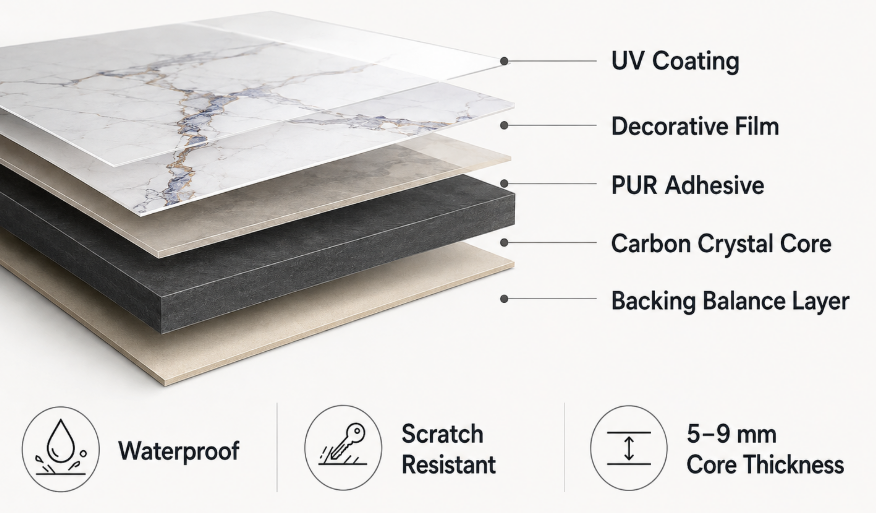

The manufacturing process relies on precision calendar extrusion where multi-layer decorative films, wear-resistant UV layers, and moisture-proof balancing backings are thermally fused to the dense carbon crystal core without relying on formaldehydic urea resins. This cold-adhesion or hot-melt polyurethane lamination technique guarantees that modern Carbon Crystal Wall Panels eliminate toxic off-gassing while resisting surface delamination under prolonged thermal stress or elevated relative humidity.
Layer Structure | Material Composition | Engineering Function | Standard Thickness Range |
Surface UV Coating | Polyurethane UV-cured lacquer with nano-ceramic micro-particles | Provides scratch resistance, stain barrier, and UV color fading protection | 0.03 mm to 0.08 mm |
Decorative Surface Film | PET, PVC, or Metallic foil sheet with high-resolution printing | Delivers aesthetic texture (wood grain, marble, cloth, solid matte, metallic) | 0.12 mm to 0.30 mm |
PUR Adhesive Layer | Reactive Polyurethane hot-melt adhesive matrix | Ensures permanent bonding between core and decorative film with zero moisture degradation | 0.02 mm to 0.05 mm |
Carbon Crystal Core | Activated bamboo charcoal micro-powder + Virgin PVC resin + Stabilizers | Provides structural rigidity, impact strength, water proofing, and fire retardancy | 5.0 mm to 9.0 mm |
Backing Balance Layer | Co-extruded moisture-resistant polymer film | Prevents board warping by balancing internal tensile stresses across opposite faces | 0.05 mm to 0.15 mm |
Selecting the correct structural density, ranging from 0.85 g/cm³ to 1.05 g/cm³, is the primary factor that dictates mechanical impact strength, screw-holding force, and long-term dimensional stability in commercial panel installations.
When engineering high-traffic public spaces such as hospital corridors, hotel lobbies, corporate headquarters, and retail centers, structural wall cladding is subjected to repeated mechanical impacts, equipment contact, and constant structural vibrations. Lower density composite boards (below 0.75 g/cm³) utilize excessive foaming agents during extrusion, resulting in internal micro-voids that severely compromise structural integrity. When a heavy object impacts a low-density panel, the core collapses internally, causing permanent surface denting or localized cracking. Premium grade Carbon Crystal Wall Panels maintain a solid, high-density extruded core that absorbs dynamic kinetic impacts without structural fracture.
Dimensional stability is another critical parameter influenced directly by core density and resin quality. Linear thermal expansion co-efficients must be strictly controlled to prevent panel buckling, joint separation, or edge popping across large wall expanses. In European commercial projects where seasonal indoor temperature shifts occur between heating and cooling cycles, high-density carbon crystal boards exhibit a thermal expansion rate of less than 0.05%, ensuring that groove-and-tongue interlocking systems remain perfectly tight and visually seamless over decades of continuous operation.
How do our engineering teams evaluate screw-holding power and mechanical fastener compatibility? In modern drywall and steel-stud construction, wall panels are frequently required to support light decorative fixtures, signage, or wall-mounted equipment. A dense bamboo charcoal co-extruded core offers a screw withdrawal resistance exceeding 1,200 N, ensuring that self-tapping hardware remains securely anchored directly into the wall board without requiring heavy rear structural timber blocking in light-duty applications.
Physical Parameter | Standard Commercial Grade | Heavy-Duty Industrial Grade | Testing Standard / Method |
Core Density | 0.80 to 0.90 g/cm³ | 0.95 to 1.08 g/cm³ | ISO 1183-1 |
Flexural Strength | ≥ 22 MPa | ≥ 35 MPa | ISO 178 |
Flexural Modulus | ≥ 1,800 MPa | ≥ 2,800 MPa | ISO 178 |
Impact Strength (Charpy) | ≥ 12 kJ/m² | ≥ 20 kJ/m² | ISO 179-1 |
Water Absorption Rate | < 0.2% (24hr immersion) | < 0.05% (24hr immersion) | ISO 62 |
Linear Thermal Expansion | < 0.08 mm/m·°C | < 0.04 mm/m·°C | ISO 11359-2 |
Choosing between PET high gloss, PVC tactile wood grain, metallic foils, and tactile fabric textured surface films depends on the required Taber abrasion cycles, anti-fouling resistance, and visual interior design requirements.
The visual performance and longevity of an interior wall panel are determined by the engineered surface film applied during factory lamination. In high-end commercial design, architects demand natural tactile finishes that mimic real timber, brushed aluminum, raw concrete, or Italian marble without the structural weight, high maintenance, and moisture sensitivity associated with natural materials. Modern decorative films utilized on Carbon Crystal Wall Panels incorporate high-definition rotogravure printing combined with micro-embossed surface textures that align perfectly with the underlying visual grain pattern, creating an authentic sensory experience.
From an engineering perspective, surface durability is quantified through scratch resistance, Taber abrasion resistance, stain resistance, and UV light fastness. For high-traffic commercial corridors, standard residential PVC films (which wear down at 300 to 500 abrasion cycles) are wholly insufficient. Commercial specifications require cross-linked Polyethylene Terephthalate (PET) or UV-hardened acrylic topcoats capable of exceeding 3,000 Taber wear cycles. This anti-scratch technology prevents unsightly scuffs from baggage, cleaning carts, and daily human contact, maintaining a pristine appearance throughout the building lifecycle.
In addition to mechanical wear, chemical stain resistance is vital in healthcare, food service, and educational facilities. Modern surface films on top-grade Carbon Crystal Wall Panels feature non-porous fluorocarbon or UV-cured topcoats that resist aggressive chemical agents including isopropyl alcohol, diluted chlorine disinfectants, iodine solutions, and oily food stains. This allows facilities maintenance personnel to utilize hospital-grade sanitizing agents without clouding, etching, or discoloring the decorative surface finish.
Film Type | Surface Texture | Key Performance Characteristic | Primary Commercial Application |
PET High Gloss Film | Ultra-smooth, mirror-like gloss reflection | Zero orange-peel distortion, fingerprint resistant, anti-yellowing | Modern luxury lobbies, feature walls, executive boardrooms |
Synchronized PVC Wood Grain | Deep embossed tactile timber texture | Warm aesthetic, high scratch resistance, moisture impervious | Hotel guest rooms, office partitions, residential living areas |
Metallic Texture Film | Brushed aluminum or anodized copper effect | Anti-static, heat resistant, elegant industrial aesthetic | Elevator interiors, commercial ceilings, retail display backdrops |
Fabric / Linen Texture Film | Micro-woven soft touch tactile pattern | Acoustic softening look, anti-glare, stain repellent coating | Conference rooms, acoustic spaces, healthcare suites |
Matching technical specifications to spatial environments requires selecting specific core thicknesses (5mm, 8mm, or 9mm), moisture barrier backings, and acoustic damping cores based on ambient humidity, room acoustics, and mechanical wall stress.
In wet or high-humidity zones such as commercial restrooms, basement corridors, indoor pool enclosures, and tropical climate building interiors, traditional gypsum boards and wood fiber paneling suffer from rapid moisture absorption, mold growth, surface swelling, and eventual structural degradation. When specifying wall panels for these damp micro-climates, procurement officers must select 8mm or 9mm fully solid carbon crystal boards with a 100% waterproof extruded core. Because bamboo charcoal particles possess inherent hydrophobic properties and do not absorb ambient moisture, the panels maintain complete structural stability without swelling or warping even under direct water spray conditions.
For high-traffic public infrastructure including airport terminals, metro stations, school hallways, and hospital waiting rooms, mechanical resilience is the non-negotiable criterion. In these demanding environments, panels must be specified with a density exceeding 0.95 g/cm³ coupled with a high-durability surface layer. Utilizing an 8mm thickness panel integrated with structural aluminum corner trims and mechanical dry-hanging clip systems prevents panel detachment caused by structural building settlement or heavy operational impacts.
In corporate environments, conference rooms, and hospitality suites where sound transmission class (STC) ratings and thermal insulation are paramount, carbon crystal boards serve as an effective multi-functional interior envelope. The dense micro-charcoal core works in tandem with hollow or multi-chambered backing profiles to attenuate mid-to-high frequency airborne sound waves. When paired with high-density mineral wool insulation behind a dry-hung structural frame, carbon crystal wall systems substantially improve room acoustics while delivering an ultra-luxurious, joint-free visual finish.
Maintenance Guidelines and Operational Care: To maximize the operational lifespan of installed carbon crystal wall assemblies, facility managers should implement non-abrasive cleaning protocols. Avoid using abrasive steel wool pads or strong acidic solutions exceeding pH 11. Regular dusting with microfiber cloths followed by wiping with warm water and neutral pH liquid detergents is sufficient to remove surface grime. For high-traffic commercial installations, applying an annual anti-static protective film treatment prevents airborne dust accumulation on high-gloss or metallic textured finishes, keeping interior surfaces pristine with minimal labor expenditure.
Commercial wall cladding must strictly comply with national building codes, requiring a minimum Class B1 flame retardancy rating and E0/ENF ultra-low formaldehyde emission certifications.
Fire safety compliance is one of the most critical regulatory barriers in modern commercial architectural design. Building codes across Europe, North America, and Asia strictly regulate the flame spread index (FSI) and smoke developed index (SDI) of interior wall finishes. Unmodified natural timber, decorative plywood, and low-grade polymer plastics represent severe fire hazards, rapidly spreading flame fronts and generating dense, toxic carbon monoxide smoke during combustion. High-grade Carbon Crystal Wall Panels are specifically formulated with inorganic flame-retardant additives integrated directly into the polymer-charcoal matrix during extrusion.
Under rigorous fire testing (such as EN 13501-1 Class B-s1, d0 or GB 8624 Class B1 standards), carbon crystal boards demonstrate self-extinguishing behavior when the direct flame source is removed. They do not contribute to fire propagation, produce negligible burning droplets, and generate minimal smoke density. This critical performance characteristic provides essential evacuation time for building occupants during an emergency and ensures full compliance with municipal commercial building fire permits.
From an environmental health perspective, indoor air quality (IAQ) has become a primary benchmark for corporate real estate developers aiming for LEED, WELL, or BREEAM building certifications. Traditional interior panels manufactured with urea-formaldehyde resin binders continually off-gas volatile organic compounds (VOCs) for years post-installation, leading to poor indoor air quality and sick building syndrome. Because premium Carbon Crystal Wall Panels utilize zero-formaldehyde co-extrusion and solvent-free PUR hot-melt bonding, they easily achieve E0 and ENF (Zero Formaldehyde Emission) certification levels, enabling immediate room occupancy immediately following construction completion.
Certification / Standard | Target Parameter | Required Threshold level | Architectural Significance |
EN 13501-1 / GB 8624 | Reaction to Fire Classification | Class B-s1, d0 (Class B1) | Mandatory for public interior wall cladding in commercial buildings |
ISO 16000 / EN 717-1 | Formaldehyde Emission Rate | ≤ 0.025 mg/m³ (ENF Grade) | Ensures ultra-safe indoor air quality for healthcare and education |
TVOC Emissions (28 days) | Total Volatile Organic Compounds | < 0.05 mg/m³ | Qualifies project for maximum LEED v4 and WELL v2 IAQ credits |
RoHS / REACH Compliance | Heavy Metal Content (Lead, Cadmium, Phthalates) | Zero detected toxic heavy metals | Ensures non-toxic lifecycle footprint and safe end-of-life recycling |
Carbon crystal wall assemblies utilize three primary installation methodologies: direct adhesive bonding to smooth substrates, aluminum slot-and-clip dry-hanging systems, or interlocking tongue-and-groove jointing over metal keels.
Direct adhesive bonding is the fastest, most cost-effective installation method for flat, dry indoor walls such as plasterboard, smooth rendered concrete, or structural plywood. The installer applies heavy-duty neutral polyurethane structural adhesive or high-tack MS polymer beads in a serpentine pattern across the rear face of the panel. The board is then positioned against the substrate and pressed firmly using leveling suction tools. This method minimizes overall wall thickness buildup, making it ideal for renovation projects where room dimensions cannot be compromised.
For commercial installations featuring uneven masonry walls, damp structural substrates, or requirements for concealed electrical conduit routing behind the wall plane, dry-hanging over aluminum keels is the gold standard installation technique. Light-gauge aluminum main studs are leveled and anchored directly to the building structure at 400mm or 600mm centers. Specialized structural aluminum edge clips or hidden interlocking brackets are screwed into the keels, receiving the machined edge grooves of the carbon crystal panels. This mechanical connection allows structural movement without stressing the decorative panels and provides a ventilated air cavity behind the wall.
Achieving a flawless architectural finish requires precise attention to panel joints, internal corners, and external wall edges. Modern Carbon Crystal Wall Panels can be direct-grooved on the rear side using a 90-degree V-router bit, allowing the panel to be folded around external corners without creating an exposed edge seam. Alternatively, color-matched or anodized aluminum decorative trims (such as H-joins, U-channels, inner corners, and external L-caps) can be integrated to create sharp, modern geometric lines that enhance the overall interior aesthetic.
Installation Method | Substrate Requirement | Installation Speed | Best Suited Application |
Direct Adhesive Bonding | Smooth, flat, dry, dust-free wall (Gypsum, Ply, Plaster) | Very High (15-20 m²/installer/day) | Interior office walls, hotel bedrooms, flat wall renovations |
Aluminum Dry-Hanging Keel | Raw masonry, brickwork, uneven concrete, metal framework | Moderate (8-12 m²/installer/day) | Large commercial lobbies, high-rise corridors, damp basements |
Interlocking Tongue-and-Groove | Timber framework or light gauge steel studs | High (12-16 m²/installer/day) | Commercial partitions, modular wall systems, retail interiors |
Selecting the optimal carbon crystal panel system for your commercial interior requires a structured engineering evaluation. Project planners must look beyond surface aesthetics and systematically audit core density metrics, thermal stability indices, flame retardancy certifications, and surface wear specs. By prioritizing high-density extruded bamboo charcoal cores (0.85 g/cm³ to 1.05 g/cm³), E0/ENF environmental safety ratings, and Class B1 fire performance, engineering teams ensure that interior wall surfaces deliver decades of maintenance-free service life.
When preparing procurement specifications for large-scale developments, always request third-party laboratory test reports validating density, fire rating, and zero-formaldehyde performance. Furthermore, verify that the supplier provides a complete architectural accessory ecosystem including color-matched edge trims, aluminum structural clips, and specialized PUR bonding adhesives. By following these rigorous engineering selection criteria, project managers can confidently specify composite wall systems that blend cutting-edge material science, superior fire safety, elevated aesthetics, and outstanding life-cycle cost performance across any demanding commercial environment.
