GS169-4F
CREATEKING
Wood grain PVC panel is a kind of wall decoration board made of polyvinyl chloride (PVC) as the main material. The surface is treated with special technology to present a realistic wood grain effect. Its square design allows the wall panels to be easily spliced during installation to form a neat and beautiful wall. Wood grain square PVC wall panels not only have the natural texture and visual beauty of wood, but also have the advantages of PVC materials such as waterproof, moisture-proof, insect-proof, and easy to clean. It is suitable for various interior decoration styles, especially for indoor spaces that require wood effects and are easy to maintain.
Product Name | 169*20/22mm Wood Grain PVC Panels |
Model No. | GS169-4F |
Material | Polyvinyl chloride resin powder, calcium carbonate, and additives |
Color | Fabric series / Skin series / Diatom mud series / Wood grain series / Leather series / Marble series |
Length | 2.8m / 3m / Customized |
Width | 169mm |
Thickness | 20mm or 22mm |
Surface Treatment | PVC Film Coated |
Application | Wall / Ceiling |
169×20/22mm wood grain PVC wall panel is a modern interior wall material that is both decorative and practical. With its unique appearance design, excellent material properties, and convenient installation method, it is widely used in residential, commercial, and public spaces. Its main features include:

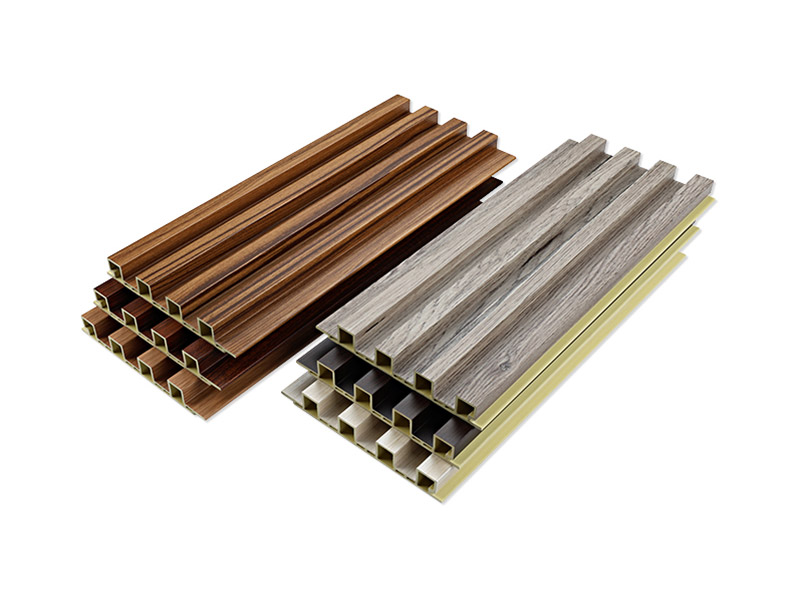

169*20/22mm wood grain PVC board is made of polymer composite material, the main components of which are polyvinyl chloride resin powder, calcium carbonate, and additives. It is not only light, moisture-proof, mildew-proof, insect-proof, and non-flammable, but also has a multi-cavity hollow structure inside, which further reduces the weight and facilitates transportation and installation.

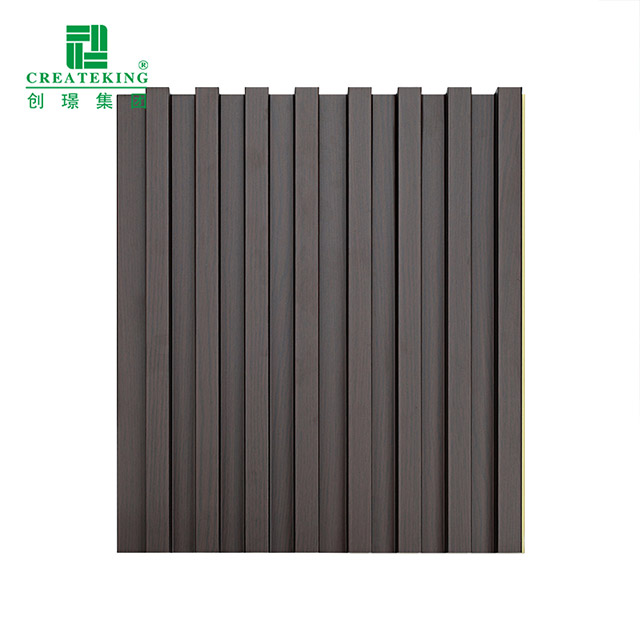

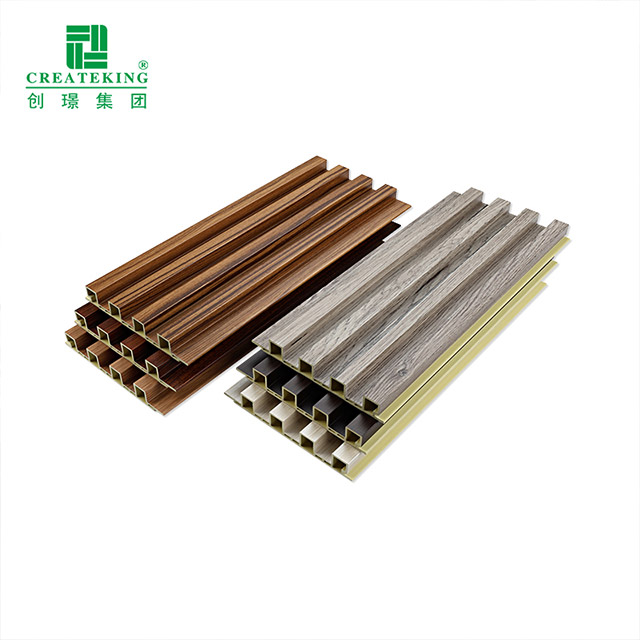

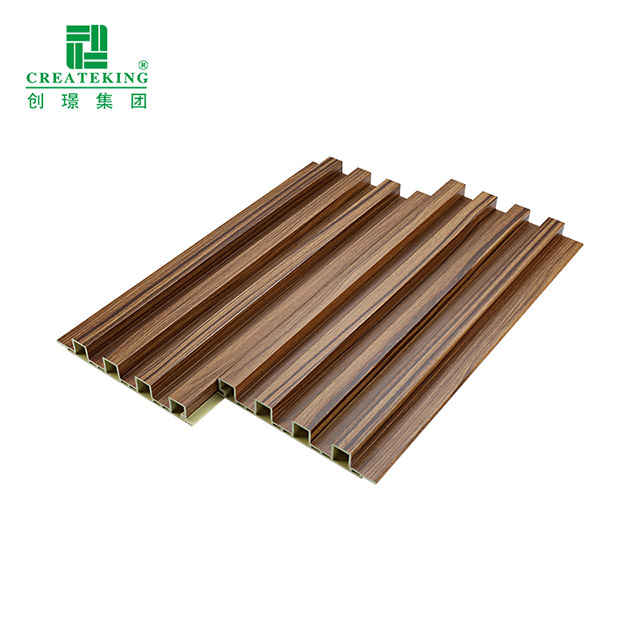

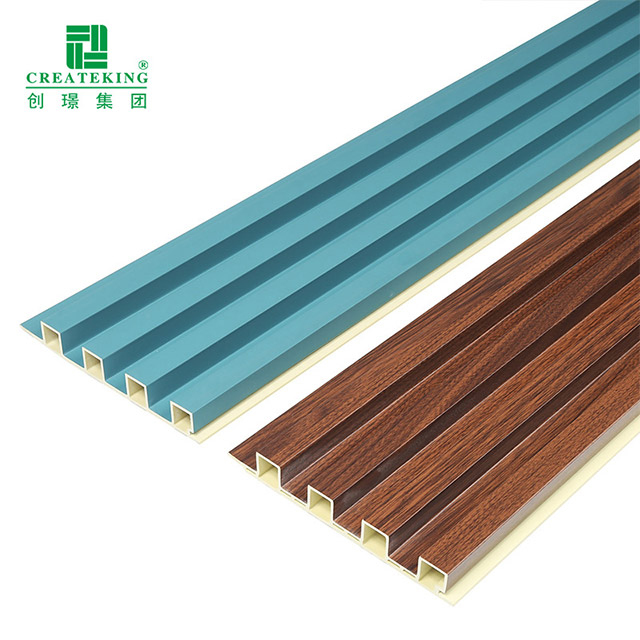

The panel has 4 raised square vertical strips, forming a concave and convex profile surface, giving the wall a stronger sense of lines and layers. This three-dimensional geometric design can enhance the visual depth of the wall and is suitable for modern, minimalist, and light luxury decoration styles.

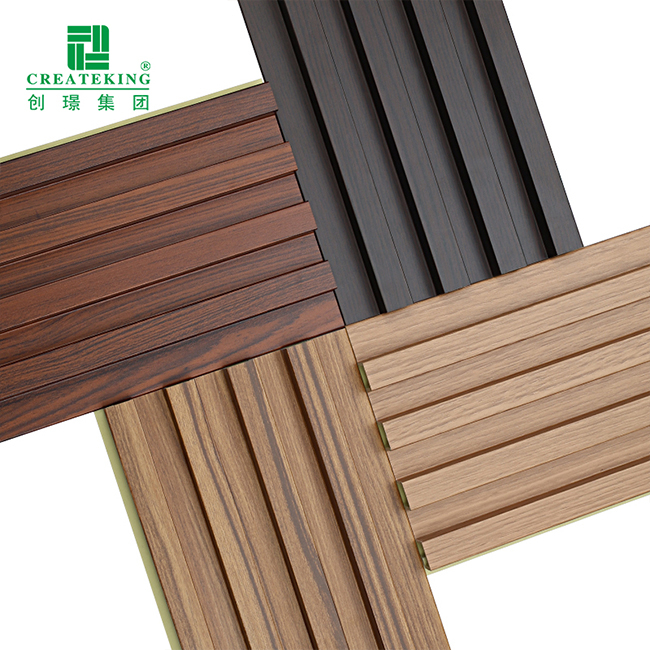

The surface uses hot glue to cover the PVC film technology to ensure that the surface will not peel off for 10 years, and it is more environmentally friendly and safer than cold glue. The color supports a variety of customization, among which the wood grain series is the most popular, which can effectively simulate the natural wood texture and enhance the warmth and texture of the space.
The mother-and-child groove splicing structure is adopted to achieve seamless connection and enhance the overall decorative effect; the panels are connected by metal buckles and then fixed with screws or nails to ensure stable and fast installation, which is convenient for large-scale construction or later maintenance.

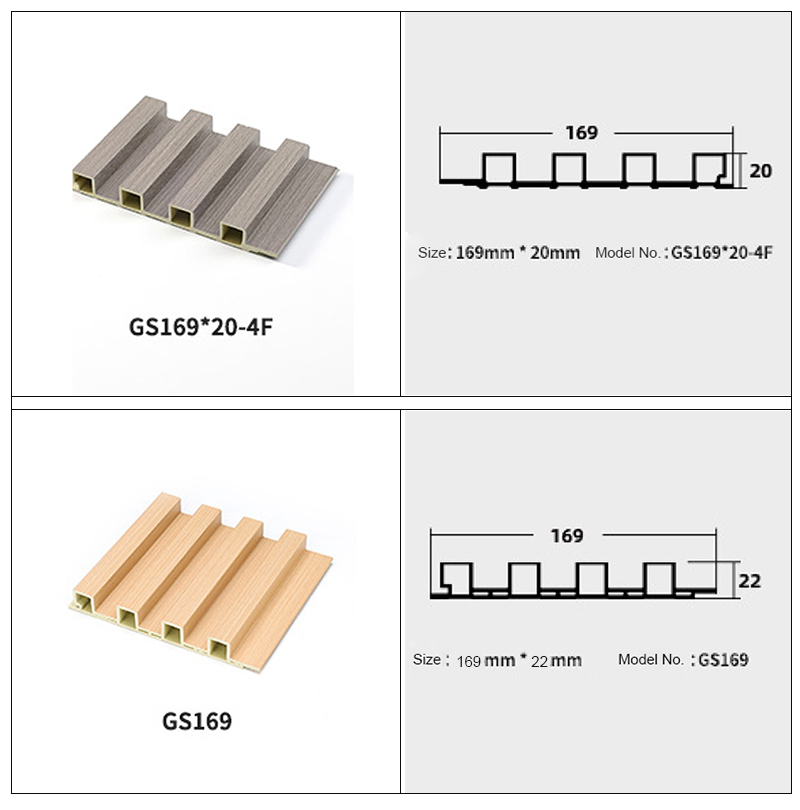

The standard length is 2.8m or 3m, the width is 169mm, and the thickness is available in two options: 20mm and 22mm. It can meet the decoration needs of different spaces and has good structural strength and visual sense of proportion.

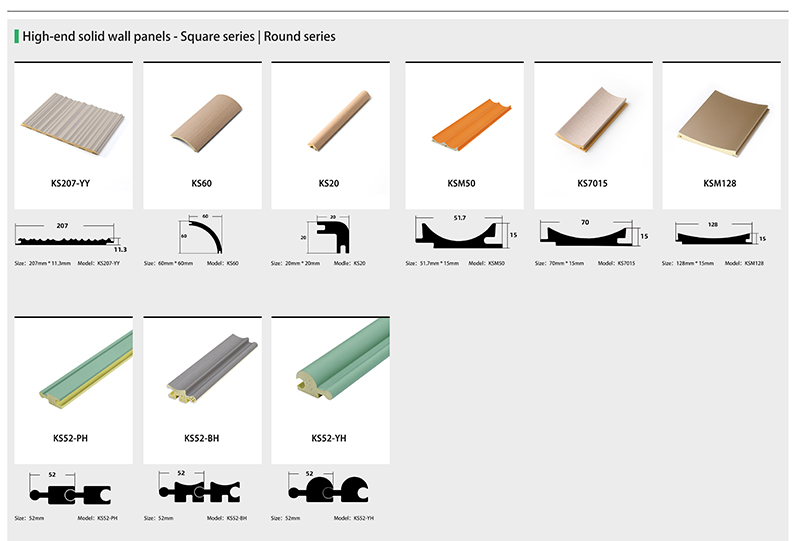

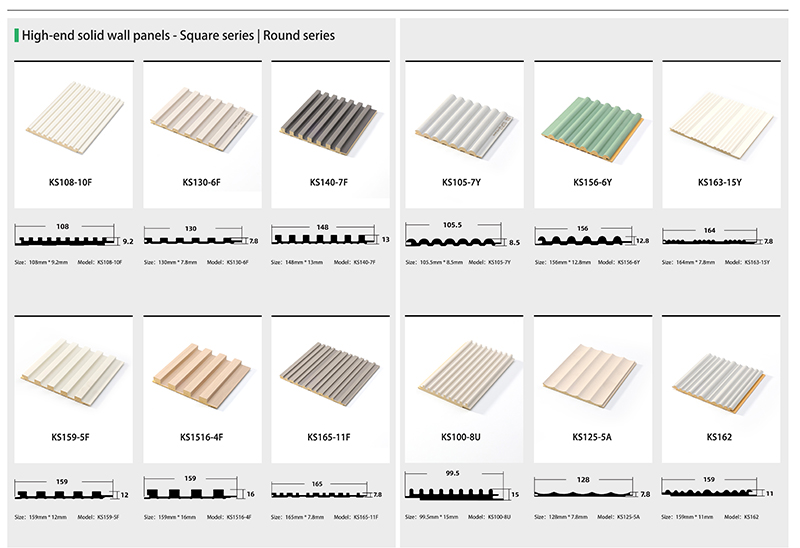

PVC wall panels come in various designs, patterns, colors, and textures, allowing you to choose a style that matches your aesthetic preferences. Some panels mimic the look of natural materials like wood, stone, or leather, while others offer a more modern or decorative style.
1. Durability: PVC panels are known for their resistance to impact, moisture, and corrosion, making them ideal for areas prone to high humidity or moisture, such as bathrooms and kitchens.
2. Easy Maintenance: PVC panels are easy to clean and maintain. They can be wiped with a damp cloth or mild detergent to remove dirt or stains.
3. Cost-effective: PVC wall panels are generally more affordable than other wall covering materials, such as tiles or natural stone.
4. Easy Installation: PVC panels are lightweight and can be easily installed using adhesives, nails, or screws. They can be installed directly onto existing walls without requiring extensive preparation.

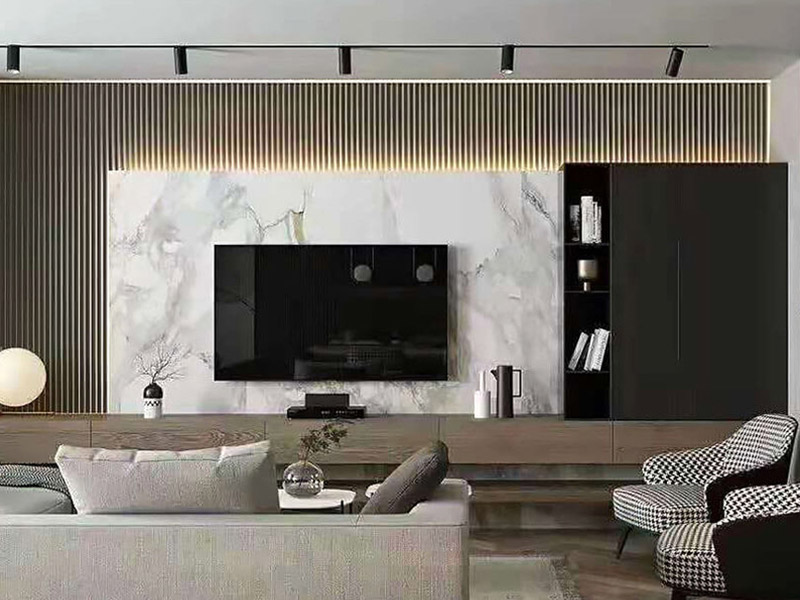

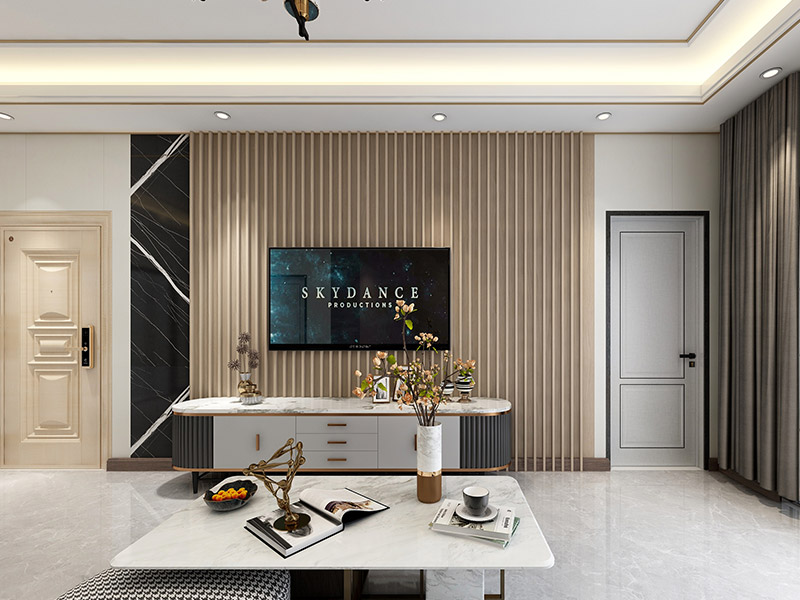

1. Residential interiors: bathrooms, kitchens, living rooms, bedrooms, ceilings, etc.
2. Commercial spaces: restaurants, hotels, offices, retail stores, etc.
3. Industrial environments: laboratories, clean rooms, food processing areas, etc.
There are many ways to install wood-grain PVC panels. You can choose the appropriate installation method according to the wall surface.
1. Flat wall
For a flat wall, you can directly glue the back of the wallboard to fix it. You can choose nail-free glue, structural glue, or glass glue to ensure that the wallboard fits the wall firmly.
Wallboards are connected by snaps or screws. Usually, two connectors are used per meter of wallboard to ensure a tight and stable connection. This method is simple and fast and is suitable for spaces with relatively flat walls.
2. Uneven wall
If the wall is uneven, you need to install the bottom layer first. Usually, you can use wooden squares, adjustable keels, or wooden boards to prime the wall to provide a flat installation foundation.
After the bottom layer is installed, install the wall panels one by one. During installation, you can use air nails to fix them diagonally at the notch to ensure that the wall panels fit the wall firmly.
1. To ensure the beauty of the wall panels after installation, you can use a ruler to measure the size before installation.
2. During the installation process, make sure that each wall panel is close to the wall, otherwise it will affect the overall appearance.
3. Before installation, make sure the wall is clean and flat, otherwise it will affect the final decorative effect.
4. Before installing the wall panels, it is recommended to reserve the socket line for better overall installation.
